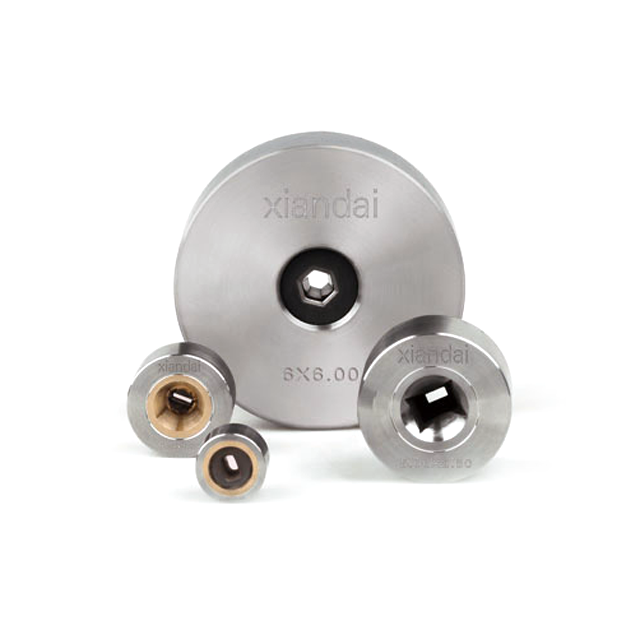

Crafted with high-performance materials and advanced manufacturing techniques, Shaped Wire Drawing Dies deliver consistent results, making them essential for applications where standard wires won’t meet functional or design requirements. Whether you’re producing architectural components, automotive parts, or electronic connectors, these dies turn your custom wire visions into reality.
In architectural design, shaped steel wires are used for decorative railings, structural supports, and custom facades. Shaped Wire Drawing Dies create wires with precise square, hexagonal, or custom cross-sections that enhance both aesthetics and structural stability. These wires resist bending and corrosion, ensuring long-lasting performance in outdoor and high-traffic environments.
Automotive engineers rely on specialized shaped wires for components like seat frames, suspension parts, and electrical connectors. These wires need to fit into tight spaces and withstand extreme temperatures and vibrations. Shaped Wire Drawing Dies produce wires with consistent dimensions and rigid structures, ensuring they integrate seamlessly into automotive assemblies and meet the industry’s strict safety standards.
Electronic devices often require custom-shaped wires for connectors, terminals, and circuit boards. These wires must conduct electricity efficiently while fitting into miniaturized designs. Shaped Wire Drawing Dies create wires with flat, rectangular, or irregular profiles that maximize contact area and improve electrical performance. The precise shaping also reduces material waste, lowering production costs for electronic manufacturers.
Shaped Wire Drawing Dies are constructed from premium materials selected for their durability and wear resistance. Depending on your application, we offer dies made from carbide, PCD (Polycrystalline Diamond), or custom alloys—each chosen to withstand the unique stresses of shaping non-circular wires. These materials ensure the die maintains its shape and precision over extended use, even when processing hard or abrasive materials.
Our dies are designed using advanced CAD technology, allowing for precise replication of even the most complex cross-sections. The shaping channels are polished to a smooth finish, reducing friction and preventing wire deformation during the drawing process. Each die undergoes rigorous quality testing to ensure the shaped wire meets your exact dimensional and surface finish requirements.
At Modern Diamond, we specialize in custom shaped wire die design to meet your unique production needs. Whether you need a standard shape (square, hexagonal, rectangular) or a one-of-a-kind custom profile, our team works with you to develop a die that delivers perfect results. We consider factors like wire material, drawing speed, and production volume to optimize the die’s design, ensuring maximum efficiency and product quality. From initial concept to final production, we’re committed to providing tailored solutions that set your products apart.
Our Shaped Wire Drawing Dies can create a wide range of profiles, including squares, rectangles, hexagons, ovals, and custom shapes tailored to your specific application. We can accommodate both simple and complex cross-sections based on your design requirements.
Yes, our dies are designed to process various materials, including steel, aluminum, copper, brass, and precious metals. We select the appropriate die material and design to match the hardness and properties of your wire material, ensuring optimal performance.
The lead time for custom dies depends on the complexity of the shape and order volume. Typically, we deliver custom Shaped Wire Drawing Dies within a reasonable timeframe, with expedited options available for urgent projects. Our team provides regular updates throughout the design and manufacturing process.
Absolutely. Shaped Wire Drawing Dies are engineered for smooth wire flow and consistent shaping, reducing production bottlenecks and material waste. The durable materials also minimize die replacement frequency, lowering downtime and increasing overall production efficiency.
