Transitioning from standard round wire to complex custom profiles demands specialized tooling. Standard drawing assumptions fail when you move away from simple cylindrical reductions. Achieving tight dimensional tolerances on non-round wire presents unique manufacturing challenges. You must manage square, rectangular, hexagonal, or highly customized geometries without compromising material integrity.
Incorrectly specified dies cause premature wear and create uneven stress distribution across the wire profile. This inevitably leads to costly production downtime and unacceptable scrap rates. Specifying Shaped Wire Drawing Dies requires a rigorous technical evaluation. You must analyze die materials, internal geometry, and machine compatibility. The specific metallurgical properties of the wire also dictate your tooling choices.
This guide breaks down the technical criteria for evaluating, selecting, and maintaining shaped dies for high-yield production.
Material Selection Dictates Tooling Lifespan: Tungsten carbide remains the industry standard for complex shaped wire drawing dies due to its machinability for sharp corners, though Polycrystalline Diamond (PCD) offers superior lifespan for simpler shapes in high-volume runs.
Geometry is More Critical in Shaped Dies: Unlike round dies, shaped dies experience uneven stress concentrations; precise engineering of the reduction angle and bearing length is required to prevent wire breakage and corner wear.
Lubrication Dynamics Change with Profiles: Non-round profiles disrupt standard hydrodynamic lubrication, necessitating specialized drawing lubricants and approach angles to prevent galling.
System Alignment is Paramount: Drawing shaped wire introduces twisting risks; the entire drawing machine—from capstans to die holders—must be optimized for non-round profiles.
Maintenance Protocols Define ROI: Proactive inspection and repolishing schedules are non-negotiable, as shaped dies cannot be easily resized or re-cut to the same extent as standard round dies.
Table of Contents
Selecting the right shaped wire drawing die requires careful evaluation of the wire application, dimensional tolerances, surface finish, and mechanical properties. These factors determine die geometry, material selection, and long-term production performance.
Different industries require different wire profiles and performance standards.
Electrical and Electronics: Flat and rectangular wires require consistent dimensions and smooth surfaces.
Automotive: Shaped wires need suitable strength, precision, and production reliability.
Medical Devices: Specialized profiles may require tight tolerances and strict quality control.
Aerospace: Selected applications demand reliable mechanical properties and traceable specifications.

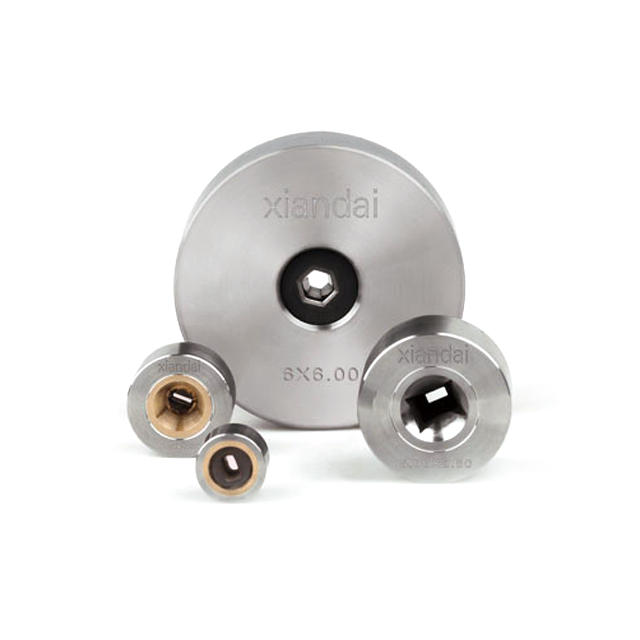

Modern Diamond offers Custom Shaped Wire Drawing Dies for square, rectangular, hexagonal, oval, and other customized wire profiles.
Dimensional accuracy is essential for non-round wire profiles.
Multiple drawing passes may be required to achieve the final shape while maintaining consistent width, thickness, and corner geometry.
Important specifications include:
Final cross-sectional dimensions.
Dimensional tolerances.
Corner radius and edge geometry.
Reduction ratio per drawing pass.
Die wear and profile consistency.
Each drawing stage should be designed to support the required final dimensions.
The surface finish of the die directly affects the quality of the finished shaped wire.
Poor polishing, surface damage, or inadequate lubrication may cause scratches and other defects.
For applications requiring coating, plating, or additional forming, suitable surface quality is particularly important.
Modern Diamond provides precision surface finishing and customized geometry through its Die Engineering Services.
Cold drawing can increase wire strength while reducing ductility.
Material hardness, forming characteristics, and reduction ratios influence the drawing process.
Some alloys may require intermediate annealing to maintain sufficient ductility during multi-pass drawing.
Die design should match the wire material and required mechanical properties.
Tungsten carbide and PCD are common choices for shaped wire drawing dies. Natural diamond may also be considered for selected precision applications.
Tungsten carbide provides good toughness and cost-effective performance.
It is suitable for many shaped wire applications, including profiles requiring complex geometry or significant forming loads.
The appropriate carbide grade depends on hardness, toughness, and wear requirements.
PCD offers excellent wear resistance and dimensional stability, making it attractive for continuous, high-volume production.
It can be particularly useful for copper, aluminum, and selected alloy wire applications.
However, complex geometries and sharp corners require careful engineering evaluation.
Explore Modern Diamond's Shaped Wire Drawing Dies for both PCD and carbide options.
Natural diamond is suitable for selected fine-wire and precision applications requiring excellent surface quality.
However, its suitability for complex shaped profiles depends on crystal properties, dimensions, and operating conditions.
Die Material | Main Advantage | Typical Application |
|---|---|---|
Tungsten Carbide | Toughness and cost efficiency | Complex profiles and general shaped wire |
PCD | High wear resistance and dimensional stability | Continuous and high-volume production |
Natural Diamond | Precision and surface finish | Selected fine-wire applications |
The best material depends on the following requirements:
Evaluation Factor | What to Consider |
|---|---|
Wire Material | Copper, aluminum, steel, or specialty alloys |
Profile Geometry | Square, rectangular, oval, or custom |
Corner Radius | Required edge and corner dimensions |
Production Volume | Batch size and expected output |
Surface Finish | Polishing and coating requirements |
Drawing Conditions | Speed, reduction ratio, and lubrication |
For custom shaped wire projects, selecting a die material and geometry that match the actual manufacturing process is more important than choosing the hardest material alone.
Contact Modern Diamond to discuss wire material, cross-sectional drawings, dimensional tolerances, and customized tooling requirements.

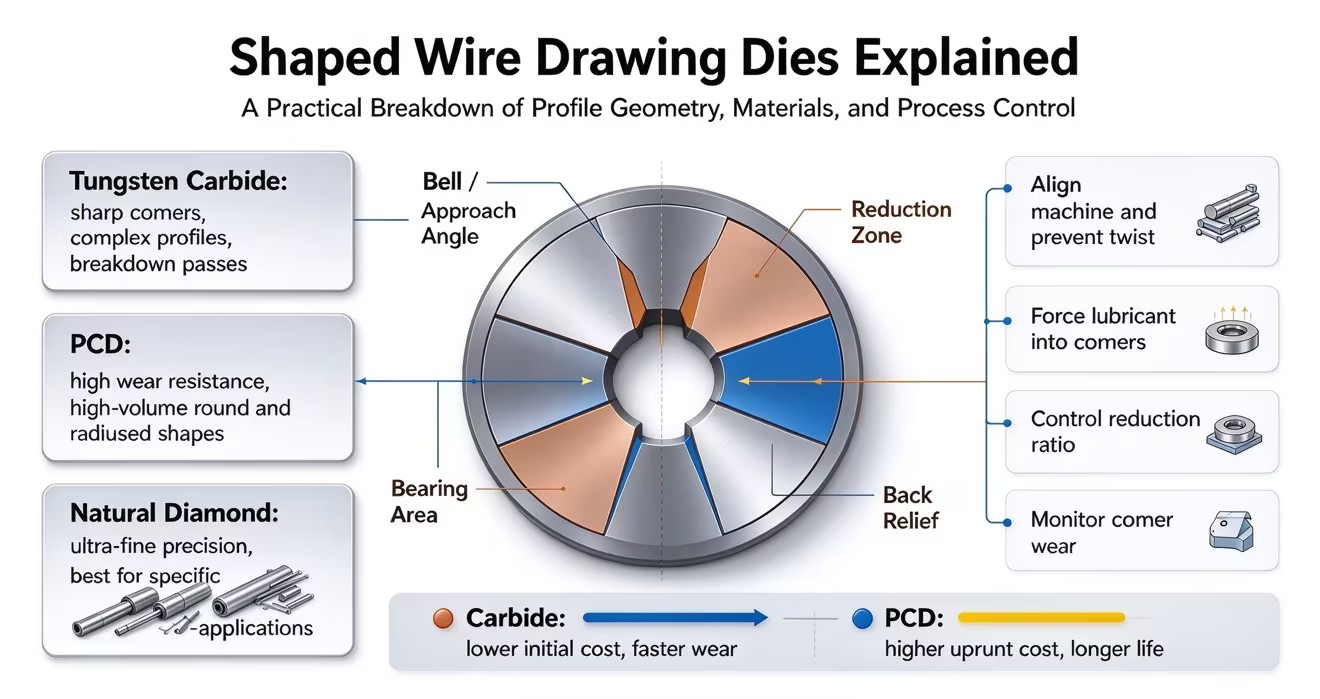

The internal geometry of a shaped wire drawing die directly affects dimensional accuracy, material flow, surface finish, and tooling life. Unlike round dies, shaped dies must control deformation across flat surfaces, corners, and complex profiles.
The entrance bell guides the incoming wire smoothly into the die, reducing the risk of surface damage and misalignment.
The approach angle helps control lubricant flow and prepares the wire for deformation.
For non-round profiles, the entrance geometry must accommodate different material flow conditions around corners and flat sections.
The reduction zone is where the wire undergoes plastic deformation to achieve the required cross-sectional shape.
An unsuitable drawing angle may cause excessive friction, uneven material flow, or wire breakage.
Customized die geometry helps maintain consistent profile dimensions during production.
Modern Diamond offers Shaped Wire Drawing Dies manufactured from PCD and carbide materials for precision non-round wire applications.
The bearing area helps control the final wire dimensions and surface finish.
A bearing section that is too short may reduce dimensional stability, while excessive length can increase friction and drawing force.
The appropriate bearing length depends on wire material, profile geometry, and drawing conditions.
The back relief provides clearance as the shaped wire exits the die.
Proper exit geometry helps prevent unnecessary contact, surface scratching, and localized stress.
This is particularly important for profiles with sharp corners or complex cross-sections.
Die Section | Primary Function | Key Design Consideration |
|---|---|---|
Entrance Bell | Guides incoming wire | Smooth entry and alignment |
Approach Angle | Supports lubrication | Lubricant distribution |
Reduction Zone | Forms the required profile | Controlled material deformation |
Bearing Area | Controls final dimensions | Accuracy and surface finish |
Back Relief | Provides exit clearance | Reduced scratching and interference |
PCD drawing dies offer excellent wear resistance, making them suitable for applications requiring stable dimensions over extended production runs.
Carbide dies generally provide a lower initial tooling cost and good mechanical toughness.
The best material depends on production volume, wire hardness, dimensional tolerances, and operating conditions.
Explore Modern Diamond's Shaped Wire Drawing Dies for customized carbide and PCD tooling solutions.
Standard profiles, such as square, rectangular, and hexagonal shapes, may require less design development than complex custom profiles.
Custom designs offer greater flexibility but may involve additional engineering, sampling, and tooling costs.
Buyers should provide accurate cross-sectional drawings and tolerance requirements before requesting a quotation.
Complex shaped wires often require multiple drawing passes to control deformation and maintain the desired geometry.
A well-designed drawing sequence helps distribute reduction across different stages.
The required number of passes depends on the starting material, final profile, reduction ratio, and work-hardening characteristics.
Factor | Main Consideration | Recommended Approach |
|---|---|---|
Die Material | Initial cost vs. wear resistance | Compare PCD and carbide |
Profile Complexity | Standard vs. custom geometry | Review drawings and tolerances |
Drawing Passes | Deformation and production efficiency | Optimize the reduction sequence |
Maintenance | Tool wear and replacement | Plan inspections |
Production Volume | Long-term tooling cost | Evaluate cost per acceptable output |
Incorrect die alignment or unstable wire guidance can cause twisting and profile deformation.
Check die holder positioning, guide rollers, pulling tension, and machine compatibility.
Suitable wire guidance is particularly important for flat, rectangular, and asymmetrical profiles.
Corners and flat sections may experience different levels of friction and wear.
Uneven wear can affect corner radii, surface finish, and dimensional accuracy.
Regular inspections help detect wear before finished wire falls outside tolerance.
Poor lubrication can increase friction, heat, and the risk of metal adhesion.
The lubricant must be compatible with the wire material, drawing speed, and die geometry.
Maintain appropriate lubrication conditions and remove contaminants that may damage the die surface.
Routine inspection and professional reconditioning can help extend the useful life of suitable shaped wire drawing dies.
However, repolishing or resizing must preserve the required cross-sectional geometry.
Some worn or damaged dies may need replacement rather than reconditioning.
Problem | Possible Cause | Recommended Check |
|---|---|---|
Wire Twisting | Poor alignment or guidance | Die holder and guide rollers |
Incorrect Profile Dimensions | Uneven die wear | Die geometry and tolerances |
Surface Scratches | Poor lubrication or die damage | Lubricant and working surface |
Frequent Wire Breakage | Excessive reduction or drawing force | Reduction sequence and tension |
Short Die Life | Abrasive material or unsuitable tooling | Material selection and maintenance |
Precision-shaped wire production requires suitable die materials, optimized internal geometry, and consistent quality control.
Modern Diamond provides Custom Shaped Wire Drawing Dies for square, rectangular, oval, trapezoidal, and other specialized wire profiles.
For custom projects, buyers can provide wire material, incoming dimensions, final profile drawings, dimensional tolerances, and production requirements.
Contact Modern Diamond to discuss customized shaped wire drawing die solutions for industrial wire manufacturing.
Specifying and operating Shaped Wire Drawing Dies requires precision engineering and strict process control. These tools dictate the success of your non-round wire production. Implement the following actionable steps to optimize your drawing operations:
Audit your current drawing machines for precise axial alignment and install specialized guide rollers to prevent wire twisting.
Specify the largest acceptable corner radii on your custom profiles to exponentially increase die lifespan and reduce uneven wear.
Upgrade your lubrication delivery system using pressure dies to ensure hydrodynamic film reaches the sharpest corners of the profile.
Implement a proactive ultrasonic repolishing schedule based on statistical process control rather than waiting for visible wire defects.
A: Shaped dies experience uneven stress and friction. Material flows differently into corners than across flat surfaces. This concentrates heat and wear in the tight radii, causing the die to degrade faster than a round die where pressure is uniform across a cylindrical bearing.
A: Usually no. Standard lubricants often fail to reach the corners of a shaped profile, leading to dry spots and galling. You need high-viscosity oils or specialized dry stearate lubricants, often applied using a pressure die, to maintain a protective film in the corners.
A: It depends on the corners and volume. If you need dead-sharp corners, Tungsten Carbide is required because PCD will chip. If you can accept a slight corner radius and are running high volumes of non-ferrous wire, PCD offers vastly superior wear resistance.
A: This depends on the complexity of the shape and the material's work-hardening rate. Most custom shapes require a progressive die set of three to six passes to gradually form the profile from a round rod without breaking the wire or destroying the dies.
A: Resizing is highly restricted. Unlike round dies, opening a shaped die alters the proportional geometry between the flats and corners. You can perform light repolishing to remove surface defects, but significant resizing usually destroys the required profile dimensions.
A: Twisting occurs due to poor machine alignment, worn capstans, or a lack of specialized guide rollers. If the die holder is not perfectly perpendicular to the pulling force, the uneven friction will force the non-round wire to rotate on its axis.
