Modern’s enameling dies are specially engineered for the precise production of enamel-coated wires (magnet wires) used in motors, transformers, and electronic components.
Each die is designed to ensure:
Uniform enamel thickness
Excellent surface smoothness
High concentricity between conductor and coating
These critical factors directly impact electrical insulation performance, winding quality, and product reliability.
Manufactured from premium materials such as polycrystalline diamond (PCD) and tungsten carbide, our enameling dies deliver exceptional wear resistance and long service life, even under continuous high-speed operation.
Enameling dies are used in the wire coating process, where insulating enamel is applied to a conductor surface. Unlike standard drawing dies, enameling dies control the final coating layer, not just the conductor diameter.
Their primary functions include:
Controlling coating thickness consistency
Maintaining wire concentricity
Ensuring smooth enamel distribution
Reducing coating defects such as bubbles and uneven layers
High-quality enameling dies are essential for achieving stable insulation properties and efficient production.
| Type | Key Advantages | Typical Applications |
|---|---|---|

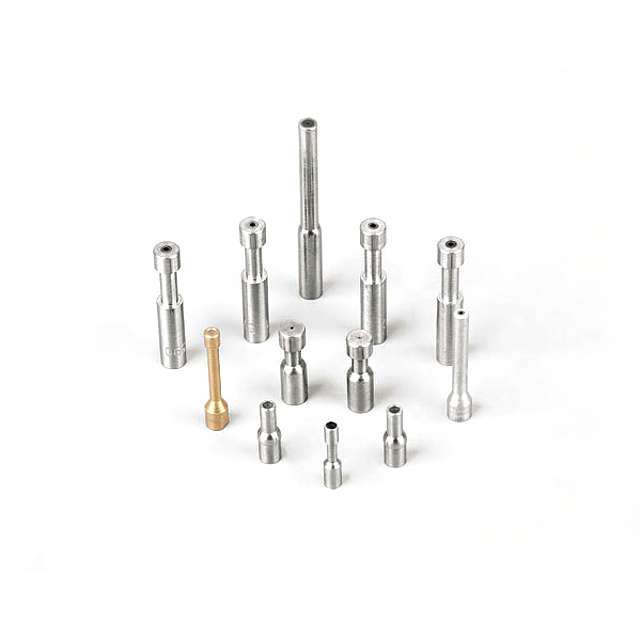

| Diamond Enameling Dies | Highest coating precision | Micro wires Electronics Medical devices High-speed enameling lines |
| Carbide Enameling Dies | Cost-effective solution Stable performance Good durability Suitable for mass production | Motors Automotive wiring Building cables General industrial use |
| PCD dies | Ultra‑smooth, inert surface; excellent wear; high concentricity | Fine to medium diameters; high‑speed lines |
| Tungsten carbide | Robust and economical; optimized polish and anti‑leakage profiles | Larger sizes; moderate speeds or abrasive conditions |
| Nano‑coated carbide | CVD/PVD coatings reduce adhesion and improve flow stability | Challenging chemistries; longer cleaning intervals |
PCD options minimize sticking and build‑up, protect surface finish, and support elevated temperatures on fine and medium wires.
Carbide dies provide reliable coating for bigger diameters and frequent size changes without compromising consistency.
Ensures consistent insulation quality for motor winding applications.
Supports stable voltage performance and reliable insulation layers.
Used in coils, inductors, and precision electronic manufacturing.
Provides smooth and uniform coating for signal stability and durability.
We engineer coating dies with fiber laser drilling for precise apertures and ultrasonic polishing for a mirror bore. High‑frequency heating stabilizes geometry. Blended entry and exit radii ease threading and reduce resin shear, while anti‑leakage features help maintain film stability.
Customized profiles are held to compression angle accuracy of ±0.5° and bearing length tolerance of ±1 μm for repeatable coating control. For longevity, PCD dies provide 100–150× the wear resistance of carbide and show minimal bore enlargement (≤0.8 μm). Fewer changes and less rework reduce total die cost per ton.
Uniform Enamel Thickness Control – consistent insulation performance
High Concentricity – improved electrical reliability
Superior Surface Finish – reduced defects
Extended Service Life – lower replacement frequency
Stable High-Speed Performance – optimized for continuous production
Custom Manufacturing Support – tailored solutions
Match material and geometry to wire size, target film thickness, enamel chemistry, and line speed. Entry angle, bearing length, and exit profile should be tuned for your process window to stabilize resin flow and concentricity.
| Factor | Preferred Option | Guidance |
|---|---|---|
| Fine/medium diameter & high speed | PCD dies | Maximize thin‑wall control and concentricity |
| Larger diameter | Carbide dies | Cost‑effective with steady film build |
| Chemistry prone to sticking | Nano‑coated carbide | Reduce adhesion; extend cleaning intervals |
| Longest tool life | PCD | 100–150× wear resistance vs. carbide |
We provide customized solutions based on your production requirements:
Custom bore size and geometry
Optimization for enamel type and viscosity
Design for multi-layer coating processes
Special polishing and finishing
Solutions for high-speed or precision lines
Our engineering team ensures optimal coating performance and reduced production defects.
PCD (Polycrystalline Diamond) – long life and high-speed production
Tungsten Carbide – cost-effective and durable
Composite Materials – for specialized applications
Material selection directly affects durability, coating consistency, and efficiency.
High-precision machining and polishing
Dimensional accuracy inspection
Surface roughness control
Performance verification
Each die is tested to ensure reliable performance in industrial applications.
They are used to apply and control enamel coating on wires during magnet wire production.
Drawing dies reduce wire diameter, while enameling dies control coating thickness and quality.
PCD is best for high-speed and long life, while carbide is suitable for cost-effective use.
Yes, they can be customized based on wire size and coating requirements.
Die precision, surface finish, and process stability all impact enamel coating quality.
