Material scrap and tooling replacement costs compound quickly in continuous manufacturing. Unplanned machine downtime drains operational resources and destroys production schedules. When process failures happen on the shop floor, they demand immediate attention. Unpredictable wire breakage severely compromises structural integrity. Surface degradation ruins final product finishes, while internal fracturing disrupts tight production runs. These issues stem from complex interactions between raw material quality, die geometry, and machine calibration. Moving from reactive troubleshooting to proactive prevention requires a systematic approach. You must evaluate metallographic structures to catch inherited flaws before they enter the machine. Lubrication dynamics require constant monitoring to prevent thermal damage. Leveraging modern equipment capabilities is the only reliable way to eliminate wire drawing defects. A structured evaluation ensures consistent quality, reduces scrap rates, and maximizes machine uptime across your entire facility.
Root Cause Complexity: Most wire drawing defects are not isolated mechanical failures but a combination of inherited wire rod flaws, suboptimal die geometry, and thermal imbalances.
Die Wear Inevitability: Continuous production naturally expands the sizing area of the wire drawing die; predictive maintenance is required to prevent dimensional inconsistencies and tensile breaks.
Equipment Evaluation: Upgrading to machinery with precise traversing mechanisms, automated tension control, and superior vibration dampening is often the most cost-effective long-term mitigation strategy for high-volume producers.
Process Standardization: Implementing strict metallographic inspections, numerical analysis for die design, and lubrication audits drastically reduces the incidence of central bursts and chevron cracking.
Table of Contents
Wire drawing defects can reduce production efficiency, increase tooling costs, and compromise finished wire quality. Even minor defects may lead to material waste, unexpected downtime, and problems in downstream manufacturing.
Wire breakage and dimensional defects can interrupt continuous drawing operations.
When a wire breaks, operators may need to stop the line, replace damaged tooling, and re-thread the wire.
These interruptions reduce production output and increase material waste.
Manufacturers should monitor key performance indicators, including:
Scrap rate and acceptable wire yield.
Wire breakage frequency.
Unplanned machine downtime.
Production output per operating hour.
Poor lubrication, material contamination, and unstable drawing conditions can accelerate die wear.
Worn dies may require more frequent replacement, increasing maintenance costs and production interruptions.
Modern Diamond's Polycrystalline Diamond (PCD) Drawing Dies offer excellent wear resistance and dimensional stability for suitable continuous wire drawing applications.
Regular inspection and preventive maintenance help maintain tooling performance.
Surface scratches, internal cracks, and diameter variations can affect the reliability of finished wire products.
Undetected defects may lead to product rejection or additional inspection requirements.
Maintaining consistent die geometry and drawing conditions helps reduce these risks.
Explore Modern Diamond's Wire Drawing Dies for different wire materials and precision requirements.
Wire defects can affect subsequent production processes, including stranding, enameling, extrusion coating, and spring manufacturing.
Downstream Process | Potential Problem | Impact on Production |
|---|---|---|
Cable Stranding | Wire breakage from internal defects | Production interruptions |
Wire Enameling | Surface scratches or contamination | Insulation coating defects |
Extrusion Coating | Inconsistent wire dimensions | Coating quality issues |
Spring Manufacturing | Uneven mechanical properties | Inconsistent spring performance |
Manufacturers should regularly evaluate:
Wire Yield: Percentage of acceptable finished wire.
Scrap Rate: Material rejected during production.
Die Life: Usable production output before replacement.
Downtime: Time lost due to defects and tooling failures.
Product Quality: Dimensional accuracy, surface finish, and mechanical properties.
Reducing wire drawing defects helps manufacturers improve production stability, extend tooling life, and maintain consistent product quality.

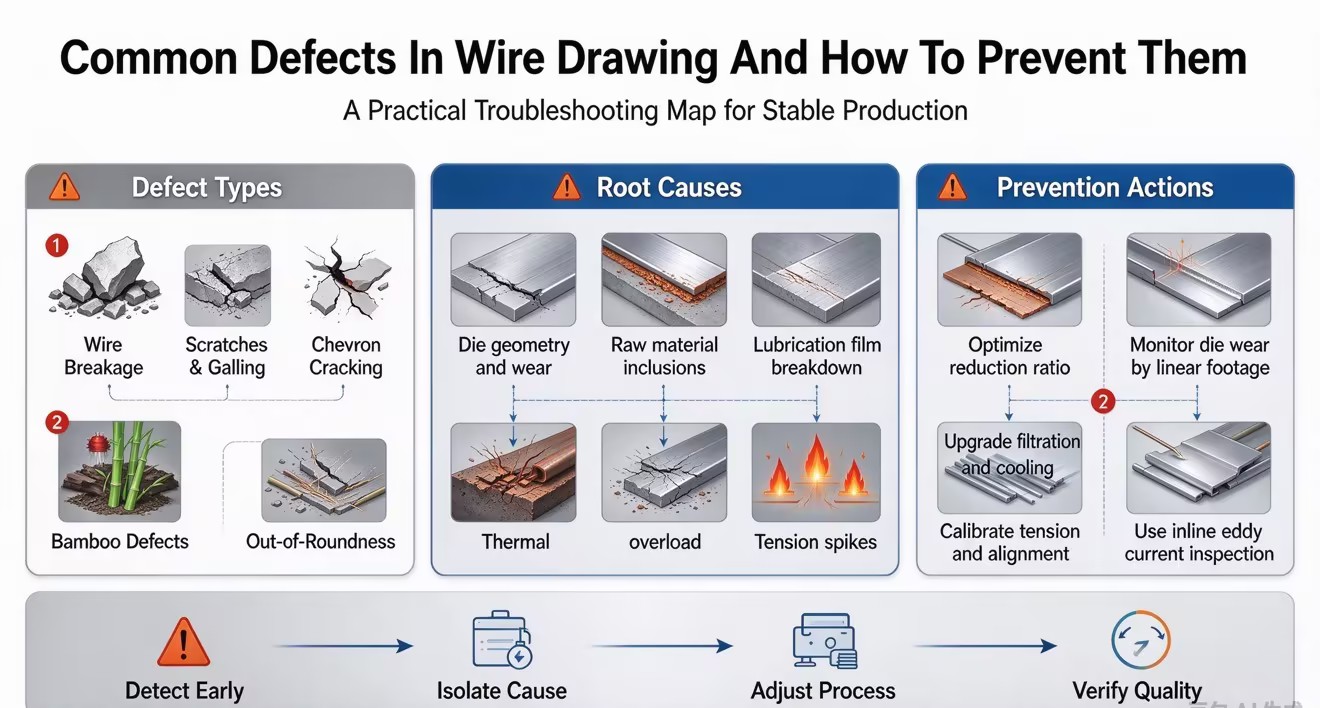

Wire drawing defects can affect surface quality, dimensional accuracy, and production efficiency. Common problems include wire breakage, scratches, internal cracks, and inconsistent wire dimensions.
Identifying the possible causes helps manufacturers improve die selection, process control, and production reliability.
Wire breakage may occur when drawing forces exceed the material's forming capability.
Common fracture patterns include:
Cup-and-Cone Fractures: Typically associated with ductile tensile failure.
Brittle Fractures: May indicate limited ductility, material defects, or unsuitable processing conditions.
Potential causes include excessive reduction, unstable tension, material defects, and inadequate annealing.
Operators should inspect fracture surfaces, review the drawing sequence, and check machine tension before adjusting process parameters.
Surface defects often result from damaged dies, poor lubrication, or contaminated wire materials.
Common problems include:
Scratches: May result from die scoring, abrasive particles, or misalignment.
Galling: Occurs when metal adheres to the die surface under unfavorable friction conditions.
Surface Cracks: May develop from excessive deformation or existing material defects.
Regular die inspection and effective lubrication help reduce these problems.
Modern Diamond offers Polycrystalline Diamond (PCD) Drawing Dies with excellent wear resistance for continuous wire drawing applications.
Central bursts are internal cracks that can develop during wire drawing without obvious external surface damage.
They may result from unsuitable reduction ratios, die geometry, or material conditions.
Periodic surface variations, sometimes described as bamboo-like defects, may indicate unstable deformation, but they do not independently confirm internal cracking.
Cross-sectional inspection or suitable non-destructive testing may be required to identify internal defects.
Inconsistent wire dimensions may result from die wear, poor alignment, or unstable drawing tension.
Typical problems include:
Oversized wire caused by worn die openings.
Ovality associated with uneven deformation or tooling wear.
Diameter fluctuations resulting from unstable operating conditions.
Properly manufactured Wire Drawing Dies help maintain dimensional consistency when matched with suitable production conditions.
Defect | Possible Cause | Recommended Check |
|---|---|---|
Wire Breakage | Excessive reduction or unstable tension | Drawing sequence and tension |
Surface Scratches | Damaged die or contamination | Die surface and wire cleanliness |
Galling | Inadequate lubrication | Lubricant condition and die wear |
Surface Cracks | Excessive deformation or inherited defects | Wire material and process settings |
Central Bursts | Unsuitable deformation conditions | Die geometry and cross-sectional inspection |
Out-of-Roundness | Uneven wear or misalignment | Die bore and equipment alignment |
Diameter Variation | Tool wear or unstable tension | Dimensional monitoring and process control |
Wire drawing defects can result from incorrect die geometry, poor raw material quality, insufficient lubrication, and unstable machine operation. Understanding these factors helps manufacturers reduce wire breakage, surface damage, and dimensional inconsistencies.
Die geometry directly influences metal flow, drawing force, and finished wire dimensions.
An unsuitable approach angle, excessive reduction ratio, or incorrect bearing length may cause uneven deformation and premature die wear.
As the die opening wears, dimensional accuracy and surface quality may deteriorate.

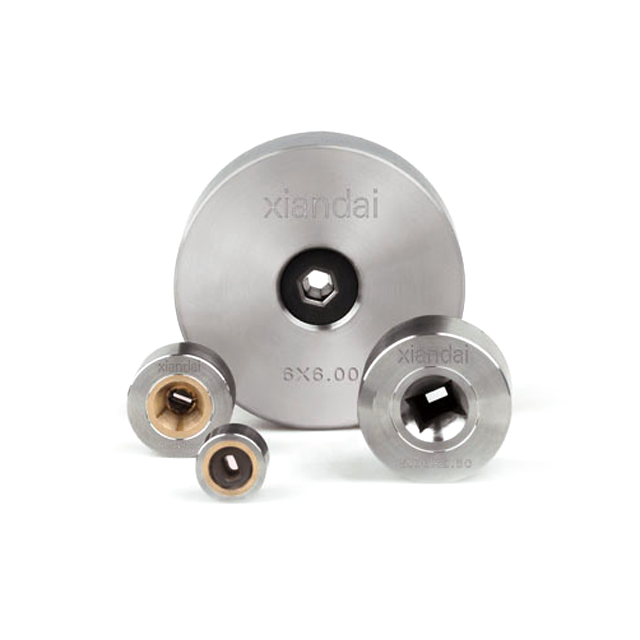

Modern Diamond offers Shaped Wire Drawing Dies with customized internal geometries for different wire materials and cross-sectional profiles.
Surface defects and inclusions in incoming wire rods can lead to problems during drawing.
Common issues include:
Surface cracks and scratches.
Oxide scale and contamination.
Inconsistent material hardness.
Internal inclusions and other material defects.
Proper incoming material inspection and surface preparation help reduce these risks.
Insufficient lubrication increases friction, heat generation, and the risk of surface damage.
Lubricant contamination or unsuitable temperature conditions can accelerate die wear and contribute to wire breakage.
Operators should monitor lubricant condition, flow, filtration, and cooling performance.
Unstable drawing tension and poor machine alignment can affect wire quality.
Worn capstans, inconsistent pulling speeds, and incorrect take-up settings may cause scratches, deformation, or breakage.
Regular inspection of wire guidance, tension controls, and winding equipment supports stable operation.
Selecting suitable die materials and internal geometries is essential for consistent wire quality.
Tungsten carbide offers good toughness for many industrial drawing applications.
Polycrystalline Diamond (PCD) provides excellent wear resistance and dimensional stability, particularly in suitable continuous drawing operations.
Modern Diamond supplies PCD Drawing Dies with customizable bore sizes, reduction angles, and bearing lengths.
Effective lubrication reduces friction between the wire and die surface.
Important measures include:
Selecting lubricants suitable for the wire material.
Maintaining appropriate lubricant temperature.
Removing metallic particles through filtration.
Inspecting lubricant delivery and cooling systems.
Regular quality inspection helps identify defects before they affect large production batches.
Inspection may include incoming rod examination, dimensional measurements, surface checks, and suitable non-destructive testing.
The inspection method should match the material, production speed, and quality requirements.
Preventive die maintenance helps maintain consistent drawing performance.
Track die condition, finished wire dimensions, and production output to determine suitable inspection and replacement intervals.
Where technically feasible, professional repolishing or reconditioning may extend die service life.
Defect | Possible Cause | Recommended Action |
|---|---|---|
Wire Breakage | Excessive reduction or unstable tension | Review drawing sequence and tension |
Internal Cracking | Unsuitable deformation conditions or material defects | Check die geometry and wire rod quality |
Surface Scratches | Poor lubrication or damaged die | Inspect die surface and lubricant |
Galling | Metal adhesion caused by inadequate lubrication | Improve lubrication and cooling |
Out-of-Roundness | Uneven die wear or misalignment | Check die condition and alignment |
Inconsistent Diameter | Die wear or unstable operation | Monitor bore dimensions and drawing settings |
Stable machine operation helps reduce vibration and unexpected wire breakage.
Operators should inspect machine alignment, capstan condition, motor synchronization, and tension control.
Modern control systems may improve consistency when correctly configured for the production line.
Proper wire winding reduces tangling and damage during production and subsequent processing.
Check take-up speed, traversing alignment, spool condition, and winding tension.
Uneven winding should be corrected before it causes repeated production interruptions.
Equipment upgrades should be based on actual production problems and measurable performance requirements.
Potential improvements include better tension control, lubrication filtration, cooling capacity, and process monitoring.
Before increasing drawing speed, verify that the tooling and supporting equipment can operate reliably under the new conditions.
Inspection Area | Main Check | Expected Benefit |
|---|---|---|
Drawing Dies | Geometry, wear, and surface finish | Consistent dimensions |
Raw Materials | Surface quality and material defects | Reduced inherited defects |
Lubrication | Cleanliness, flow, and temperature | Lower friction and wear |
Machine Alignment | Wire guidance and vibration | Stable drawing |
Tension Control | Capstan synchronization and pulling force | Fewer unexpected breaks |
Take-Up System | Spool winding and traversing | Reduced tangling |
Reliable wire drawing depends on suitable tooling, stable processing conditions, and consistent maintenance.
Modern Diamond provides Wire Drawing Dies for copper, aluminum, steel, and other industrial wire applications.
For customized tooling, buyers can provide wire material, incoming and finished diameters, drawing speed, reduction requirements, and dimensional tolerances.
Contact Modern Diamond to discuss precision drawing dies and application-specific tooling requirements.
A: Frequent wire breakage usually results from excessive mechanical tension, severe die wear in the sizing area, or material inclusions. When the drawing force exceeds the wire's tensile strength, it snaps. Inherited flaws in the wire rod also act as stress concentrators, leading to sudden ductile or brittle fractures during reduction.
A: Die geometry directly dictates material flow. An incorrect approach angle or excessive reduction ratio creates high hydrostatic tension in the wire core. This tension causes internal central bursts and external chevron cracking. Proper geometry ensures uniform deformation and prevents surface galling.
A: Bamboo defects are periodic variations in wire diameter that make the wire look like a bamboo stalk. They are external indicators of internal central bursts. These defects occur when improper die angles or extreme reduction ratios cause the core material to fracture internally while the surface remains intact.
A: Start by checking the traversing width and speed to ensure smooth spooling. Inspect the traversing motor circuits and replace any faulty limit switches. Verify capstan alignment to prevent uneven pulling. Finally, ensure adequate lubrication flow and cooling to prevent thermal degradation and galling.
A: Out-of-round wire is primarily caused by asymmetrical die wear. When the sizing area degrades unevenly, the wire loses its circular profile. Improper die alignment within the holder or uneven cooling can also pull the wire off-center, resulting in gauge variations and ovality.
A: Lubrication creates a hydrodynamic film that prevents metal-to-metal contact between the wire and the die. This film reduces friction, prevents surface scratching, and dissipates extreme heat. Proper lubrication stops localized welding (galling) and preserves both the wire's surface finish and the die's lifespan.
