High-volume precision manufacturing demands efficiency on the shop floor. Relying on secondary machining for complex component cross-sections introduces unnecessary material waste, extended cycle times, and inflated unit costs. Engineering and procurement teams must balance strict dimensional tolerances with scalable production costs. Specifying standard round wire often requires expensive post-processing, while custom-machined profiles fail to scale efficiently. Transitioning to custom shaped wire requires a thorough understanding of metallurgical capabilities, tooling requirements, and the specific manufacturing processes used to achieve net-shape or near-net-shape profiles. You need to know exactly how the metal behaves under extreme reduction. This guide breaks down the technical realities of shaped wire production to inform supplier evaluation and material specification, helping you eliminate scrap and bypass the milling machine entirely.
Net-Shape Efficiency: Shaped wire eliminates or significantly reduces secondary machining, lowering scrap rates and improving material yield for complex cross-sections (e.g., teardrop, rectangular, crescent).
Process Dictates Performance: The choice between cold drawing and Turks head rolling directly impacts the wire’s mechanical properties, surface finish, and achievable corner radii.
Tooling Economics: Custom shaped wire drawing dies require upfront tooling investment, making the process most cost-effective for medium-to-high volume production runs where tooling costs can be amortized.
Enhanced Mechanical Properties: Cold working during the shaping process induces work hardening, often yielding higher tensile strength and fatigue resistance compared to machined alternatives.
Cross-Sectional Optimization: The shaping process strategically decreases the overall cross-sectional area, allowing engineers to meet strict weight and spatial constraints in micro-manufacturing and fine wire applications.
Table of Contents
Shaped wire refers to metal wire manufactured with a non-round cross-section, such as square, rectangular, oval, or custom profiles. It is commonly produced through precision cold drawing or rolling to meet specific dimensional and functional requirements.
Compared with machining individual components, shaped wire can reduce material removal, simplify downstream processing, and support consistent production.
Successful shaped wire manufacturing depends on accurate profile geometry, suitable materials, and stable forming conditions.
Important factors include:
Dimensional Accuracy: Consistent width, thickness, and corner radius.
Surface Quality: Smooth surfaces with minimal forming defects.
Material Properties: Suitable strength, ductility, and work-hardening behavior.
Production Volume: Sufficient demand to justify custom tooling.
Process Compatibility: Appropriate reduction ratios and lubrication.
Modern Diamond offers Shaped Wire Drawing Dies for precision non-round wire production, with custom profiles designed around customer drawings and processing requirements.
Standard shaped wires include square, rectangular, flat, and hexagonal profiles. These are commonly used in electrical components, mechanical assemblies, and industrial manufacturing.
Custom profiles provide additional design flexibility for specialized applications.
Wire Profile | Typical Application |
|---|---|
Square | Electrical contacts and precision components |
Rectangular | Transformer windings and flat conductors |
Hexagonal | Specialized mechanical components |
Oval | Decorative and specialty wire products |
Trapezoidal | Industrial components |
Custom Shapes | Automotive, electronics, and specialized manufacturing |
Explore Modern Diamond's Shaped Wire Drawing Dies range for standard and customized cross-sectional designs.
Cold-formed shaped wire can provide material efficiency and production advantages when long, consistent profiles are required.
CNC machining remains useful for complex individual parts and low-volume production.
Factor | Shaped Wire Drawing | CNC Machining |
|---|---|---|
Manufacturing Method | Forms metal through a shaped die | Removes material using cutting tools |
Material Utilization | Often reduces material waste | Produces machining chips |
Best Production Type | Continuous profiles and repeated components | Complex individual components |
Tooling Investment | Requires profile-specific tooling | Depends on machining setup |
Dimensional Accuracy | Depends on material and die design | Depends on equipment and process |
Main Advantage | Efficient repeated-profile production | Flexible component geometry |
Cold drawing can improve dimensional consistency and modify the mechanical properties of metal wire.
Potential advantages include:
Reduced material removal compared with machining.
Consistent cross-sectional profiles.
Improved production efficiency for suitable volumes.
Work hardening that may increase strength.
Reduced need for selected secondary operations.
However, cold forming can also reduce ductility and introduce residual stresses. Actual fatigue performance depends on material, forming conditions, geometry, and subsequent treatment.
Shaped wire is especially useful when a project requires repeated non-round profiles with consistent dimensions.
It can be considered for electrical conductors, connectors, springs, automotive components, and specialized industrial products.
For custom applications, buyers should provide the wire material, starting dimensions, final profile drawing, tolerances, corner radii, and expected production volume.
Modern Diamond provides customized shaped wire drawing dies to help manufacturers achieve accurate profiles and stable production performance.

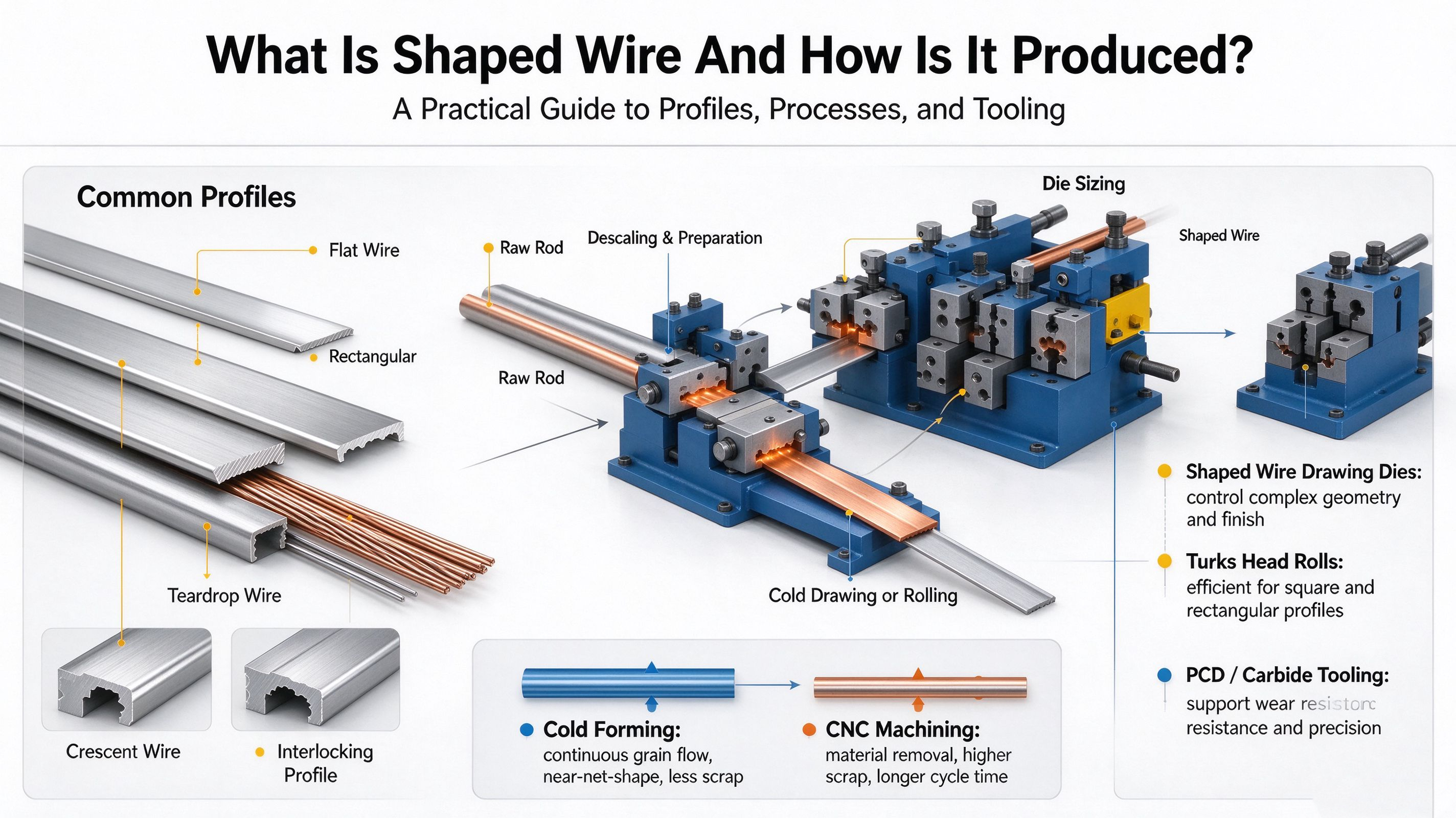

Shaped wire manufacturing transforms metal rods into precise non-round profiles through drawing, rolling, and secondary forming processes. The appropriate method depends on wire material, cross-sectional geometry, and dimensional requirements.
Wire quality begins with suitable raw material preparation.
Metal alloys are melted, cast, and processed into wire rods. Hot rolling or forging may be used to improve material uniformity and prepare the rod for further processing.
Surface cleaning helps remove scale and contaminants before drawing.
Cold drawing reduces the wire's cross-sectional area while forming the required profile.
The wire passes through precision dies, often using multiple drawing stages for complex shapes.
Die geometry, reduction ratio, and lubrication influence dimensional accuracy and surface finish.

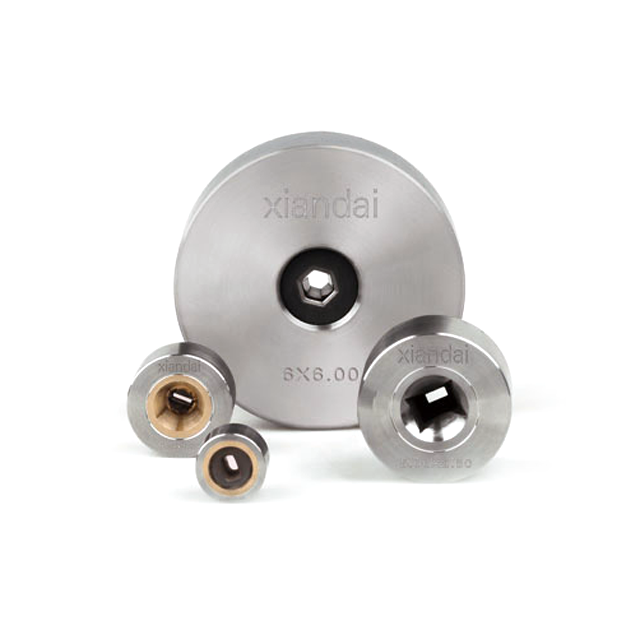

Modern Diamond's Shaped Wire Drawing Dies are available in PCD and carbide materials for square, rectangular, hexagonal, and other custom wire profiles.
Turks head rolling uses adjustable rollers to form wire into specific cross-sectional shapes.
It is commonly considered for square, rectangular, and other profiles suited to roll forming.
Compared with drawing, rolling provides different tooling and deformation characteristics.
Some manufacturing processes combine rolling and drawing to achieve the required dimensions and surface quality.
After shaping, wire may undergo additional operations such as:
Swaging: Reducing or modifying selected sections.
Bending: Creating two-dimensional or three-dimensional components.
Coiling: Manufacturing springs and other formed wire products.
Heat Treatment: Adjusting mechanical properties when required.
Dimensional requirements influence the selection of drawing dies and production methods.
Complex profiles require control of width, thickness, corner radius, and surface finish.
PCD and carbide dies offer different combinations of wear resistance and toughness.
Explore Modern Diamond's Shaped Wire Drawing Dies for precision non-round wire applications.
Cold drawing increases material strength but may reduce ductility.
Some alloys require intermediate annealing to restore formability during multi-stage processing.
The appropriate reduction sequence depends on wire material, profile complexity, and mechanical requirements.
Factor | Shaped Wire Drawing | Turks Head Rolling |
|---|---|---|
Forming Method | Pulls wire through a shaped die | Forms wire using rollers |
Typical Profiles | Square, rectangular, oval, custom shapes | Square, rectangular, selected profiles |
Tooling | Precision drawing dies | Adjustable forming rollers |
Main Advantage | Accurate profile control | Flexible forming adjustments |
Key Consideration | Die wear and drawing force | Roller setup and profile control |
The best process depends on material properties, tolerance requirements, and production equipment.
Flat and rectangular wires are widely used in electrical applications.
Typical products include transformer conductors, precision connectors, and specialized electrical components.
Accurate wire geometry helps support consistent assembly and performance.
Shaped wires are used in springs, fastening components, and specialized mechanical assemblies.
Custom profiles can help meet space, strength, and manufacturing requirements.
Selected shaped wire profiles support medical devices and precision instruments.
These applications may require specialized alloys, fine dimensions, and strict quality control.
Material compatibility and application-specific testing remain essential.
Wire Profile | Typical Application |
|---|---|
Square | Electrical contacts and mechanical components |
Rectangular | Transformer windings and flat conductors |
Oval | Specialty cables and decorative products |
Trapezoidal | Industrial and structural components |
Custom Profile | Automotive, electronic, and specialized applications |
Custom wire profiles require precision tooling matched to the required geometry.
Before placing an order, confirm manufacturing feasibility, tooling costs, sample requirements, and estimated lead times.
Different alloys respond differently to cold forming.
For example:
Stainless Steel: May require careful work-hardening control.
Titanium Alloys: Require suitable lubrication and forming conditions.
Copper Alloys: Need appropriate reduction ratios and surface protection.
Nickel Alloys: May require specialized tooling and multi-stage processing.
Consistent dimensional accuracy requires suitable inspection procedures.
Manufacturers should verify profile dimensions, corner geometry, surface condition, and batch consistency.
Inspection methods should match the wire profile and customer specifications.
When requesting a quotation, prepare:
Wire material and grade.
Incoming wire dimensions.
Final cross-sectional drawing.
Width, thickness, and corner radii.
Required dimensional tolerances.
Drawing speed and production volume.
Surface finish requirements.
Existing machine and die holder dimensions.
Modern Diamond provides Custom Shaped Wire Drawing Dies for industrial wire manufacturing.
Audit your current bill of materials to identify high-volume machined components with continuous, non-round cross-sections.
Compile accurate annual volume data to calculate the break-even point for custom tooling investments.
Request a technical feasibility review from a manufacturer to confirm if your required corner radii and tolerances are achievable via cold drawing.
Demand transparent tooling amortization schedules and die maintenance policies during the supplier vetting process.
Verify that the chosen supplier utilizes inline laser measurement and eddy current testing for continuous quality assurance.
A: Flat wire is a specific sub-category of shaped wire. Manufacturers typically produce flat wire using Turks head rolling mills to flatten round stock. Shaped wire is a broader term that encompasses all non-round profiles, including complex custom geometries like teardrops, crescents, and interlocking shapes produced via cold drawing.
A: The dies dictate the exact dimensional tolerances, surface finish quality, and corner radii of the wire. The internal geometry, specifically the approach angle and bearing length, controls how the metal flows. High-quality dies made from tungsten carbide or PCD ensure consistent dimensions and prevent surface defects during heavy reductions.
A: Fine wire refers to shaped wire drawn down to micro-diameters, often measured in microns. Producing shaped fine wire requires highly specialized PCD dies and extreme tension control. Engineers use these microscopic profiles heavily in medical devices, such as catheter braiding, and in precision electronics.
A: While manufacturers can shape most metals, the process varies drastically by alloy. Highly brittle or work-hardening-prone alloys, like certain stainless steels or titanium, require slower reduction rates and specialized intermediate annealing. Softer metals like copper conform to complex shapes much more easily without fracturing.
A: Realistic tolerances generally range from +/- 0.0005 inches to +/- 0.002 inches. However, these limits depend heavily on the size of the wire, the complexity of the shape, the specific alloy being drawn, and the manufacturing method employed. Tighter tolerances often require slower production speeds and more frequent die maintenance.
A: Yes, but it is highly volume-dependent. Shaped wire eliminates secondary cutting operations and provides near-100% material yield, saving immense costs on raw materials and machining time. However, the upfront tooling costs mean these savings are only realized during medium-to-high volume production runs.
A: A Turks head rolling mill is specialized equipment featuring four adjustable rollers positioned on the same plane. It compresses round wire into rectangular or square profiles. It is specifically used when a profile requires sharp, well-defined corners that are difficult to achieve through traditional static drawing dies.
