Our wire drawing dies are engineered for manufacturers who require precise diameter control, consistent surface finish, and extended die life. We supply a full range of PCD, carbide, natural diamond, single crystal, nano-coated, and shaped wire drawing dies to meet different production requirements.
These dies are widely used in the production of copper wire, aluminum wire, steel wire, alloy wire, and specialty materials, supporting industries such as electrical cable manufacturing, automotive components, electronics, and industrial wire processing.
With advanced manufacturing technology and strict quality inspection, we ensure stable performance in both high-speed and precision wire drawing applications.
We cover Φ0.012–Φ40.0 with annual capacity up to 2,000,000 pieces. Japanese molding, fiber laser drilling, and ultrasonic polishing support mirror finishes and stable geometry. Proven outcomes include diamond dies with 100–150× the wear resistance of carbide, die life up to 35 tons per piece under suitable conditions, bore enlargement control ≤0.8 μm, and surface roughness as low as Ra 0.03 μm. Strict QC and metrology (e.g., CU10, CU4) underpin batch consistency.
Choose the material that matches wire type, target diameter, speed, and budget.
| Material | Best for | Key benefits | Trade‑offs |
|---|---|---|---|
| PCD | Copper, aluminum; high‑speed multi‑pass | High wear resistance; stable finish | Not ideal for the ultra‑finest sizes |
| Natural / Single diamond | Ultra‑fine precision | Top surface quality; tight tolerance | Higher cost; supply considerations |
| Tungsten carbide | Steel; heavy gauge; abrasive alloys | Toughness; re‑polishable | Lower wear resistance than diamond |
| Nano‑coated carbide (CVD/PVD) | Budget‑sensitive high‑speed lines | Lower friction; extended life vs. plain carbide | Not diamond‑level life or finish |

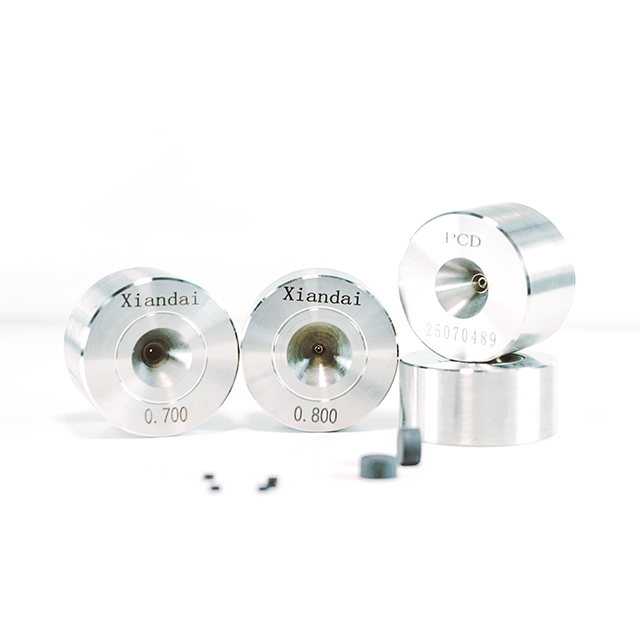

PCD (Polycrystalline Diamond) dies are the non‑ferrous workhorse. They deliver long, consistent runs in copper and aluminum at high speeds. Compared with carbide, they maintain geometry through multi‑pass reductions and offer excellent cost‑to‑life. PCD drawing dies are ideal for high-speed and large-volume production. They offer excellent wear resistance and long service life, making them suitable for non-ferrous wires such as copper and aluminum.

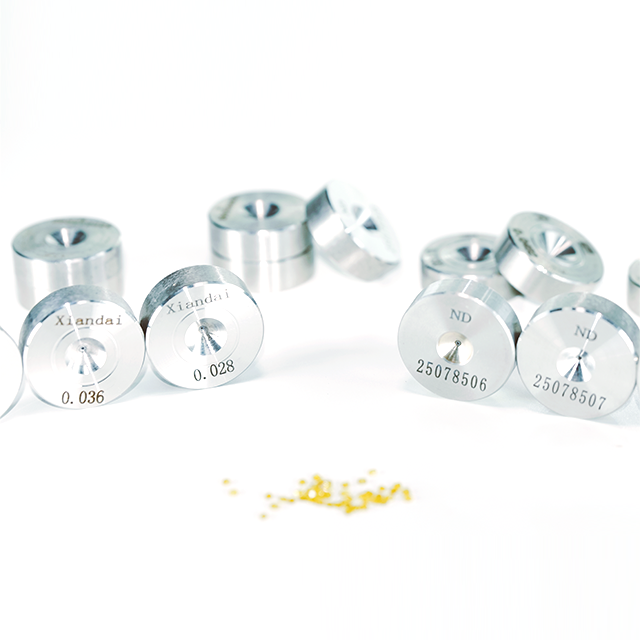

Natural diamond dies are designed for ultra-fine wire drawing and high surface quality requirements. They deliver superior precision and are commonly used in fine wire and micro-wire production.

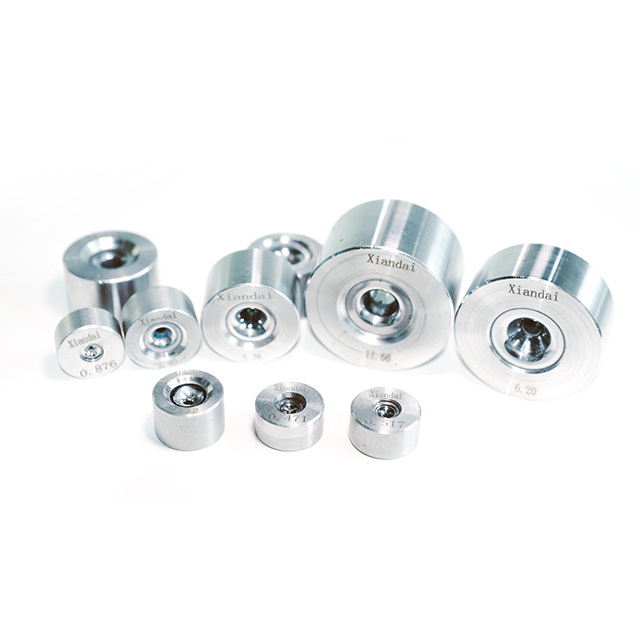

Carbide suits larger diameters, steel, and abrasive alloys. Common grades include YG8, YG6X, GK05A, and GU10. Add CVD or PVD coatings to reduce friction and extend service.

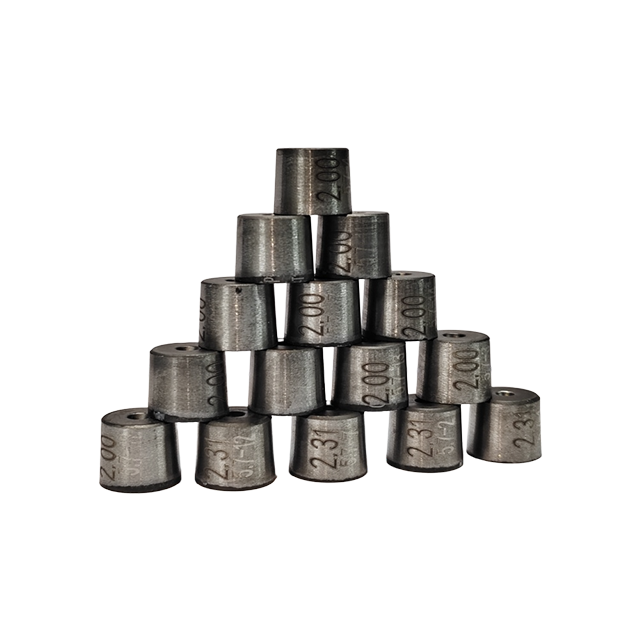

Nano-coated dies enhance surface hardness and wear resistance, helping to improve die lifespan and maintain consistent performance under demanding conditions.
| Parameter | Capability |
|---|---|
| Working diameter range | Φ0.012–Φ40.0 |
| Bearing length tolerance | ±1 μm |
| Compression angle tolerance | ±0.5° |
| Bore enlargement control | ≤0.8 μm over long runs |
Profile and surface are tuned to minimize friction and heat, preserving roundness and finish.
Our wire drawing dies are suitable for a wide range of materials and industries:
Used in electrical cables, transformers, and electronic components where high conductivity and smooth surface finish are essential.
Ideal for lightweight applications such as power transmission lines and communication cables.
Applicable for high-strength wires, springs, fasteners, and industrial components.
Ensures consistent diameter and insulation compatibility in cable manufacturing.
Supports precision wire requirements for automotive systems and machinery components.
Ensures tight tolerances and consistent wire dimensions across production batches.
High-quality materials and advanced processing extend die lifespan and reduce downtime.
Minimizes friction and improves the final wire surface quality.
Optimized design ensures consistent results in high-speed production environments.
Available in PCD, carbide, natural diamond, and other advanced materials for different applications.
Tailored solutions based on your wire material, size, and production requirements.
We provide customized wire drawing dies based on specific application requirements:
Custom die materials (PCD, carbide, natural diamond, etc.)
Customized bore size and geometry
Surface polishing and finishing options
Special coatings for enhanced wear resistance
Application-based recommendations for optimal performance
Our engineering team works closely with customers to deliver precision dies tailored to their production processes.
Each wire drawing die undergoes strict quality control procedures to ensure reliability and performance:
Advanced inspection equipment for dimensional accuracy
Surface finish and polishing verification
Material integrity and wear resistance testing
Consistent quality across batch production
This ensures every die meets the requirements of precision wire manufacturing and long-term stability.
Wire drawing dies are used to reduce the diameter of wire by pulling it through a precisely shaped opening, ensuring consistent size and surface quality.
PCD dies offer longer life and better wear resistance for high-speed production, while carbide dies are more economical for general applications.
PCD and natural diamond dies are commonly used for copper wire due to their smooth surface finish and durability.

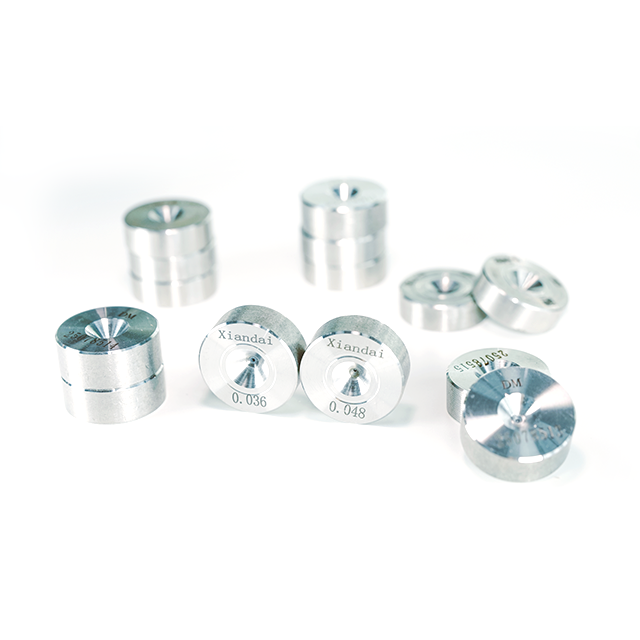

Natural diamond and single crystal diamond dies are preferred for ultra-fine and precision wire applications.
Yes, we offer fully customized solutions based on wire material, size, and application requirements.
Selection depends on wire material, production speed, required precision, and cost considerations. Our team can help recommend the best option.
As a professional manufacturer of wire drawing dies, we provide fast engineering feedback and reliable lead times.
Include wire material, initial/final diameters, pass schedule, and line speed.
Share machine type, die holder details, lubrication, and cooling notes.
Specify tolerance targets, quantity, and delivery deadline.
Send your drawings via email or our form to start rapid design confirmation and align your next campaign for throughput, quality, and predictable die life.
