Polycrystalline Diamond (PCD) is widely used in wire drawing because of its excellent wear resistance, dimensional stability, and ability to maintain consistent wire quality during continuous production. Compared with many conventional tooling materials, PCD drawing dies can reduce tool wear, extend replacement intervals, and support efficient manufacturing of copper, aluminum, stainless steel, and alloy wires.
For manufacturers operating high-volume wire drawing lines, selecting the correct die material directly affects production efficiency, surface finish, and long-term operating costs.
This article explains why PCD has become a popular choice for industrial wire drawing applications, how it compares with other die materials, and what manufacturers should consider before choosing a PCD drawing die.
Table of Contents
PCD stands for Polycrystalline Diamond, an engineered material produced by bonding numerous synthetic diamond particles under high pressure and temperature.
The resulting structure offers high hardness, excellent abrasion resistance, and relatively uniform wear characteristics.
Unlike single-crystal diamond, which has properties that vary with crystal orientation, PCD consists of multiple diamond grains. This structure can provide a useful balance of wear resistance and toughness for industrial tooling applications.
In wire drawing, a metal wire passes through a precision-shaped die opening. The die gradually reduces the wire's cross-sectional area to produce the required diameter.

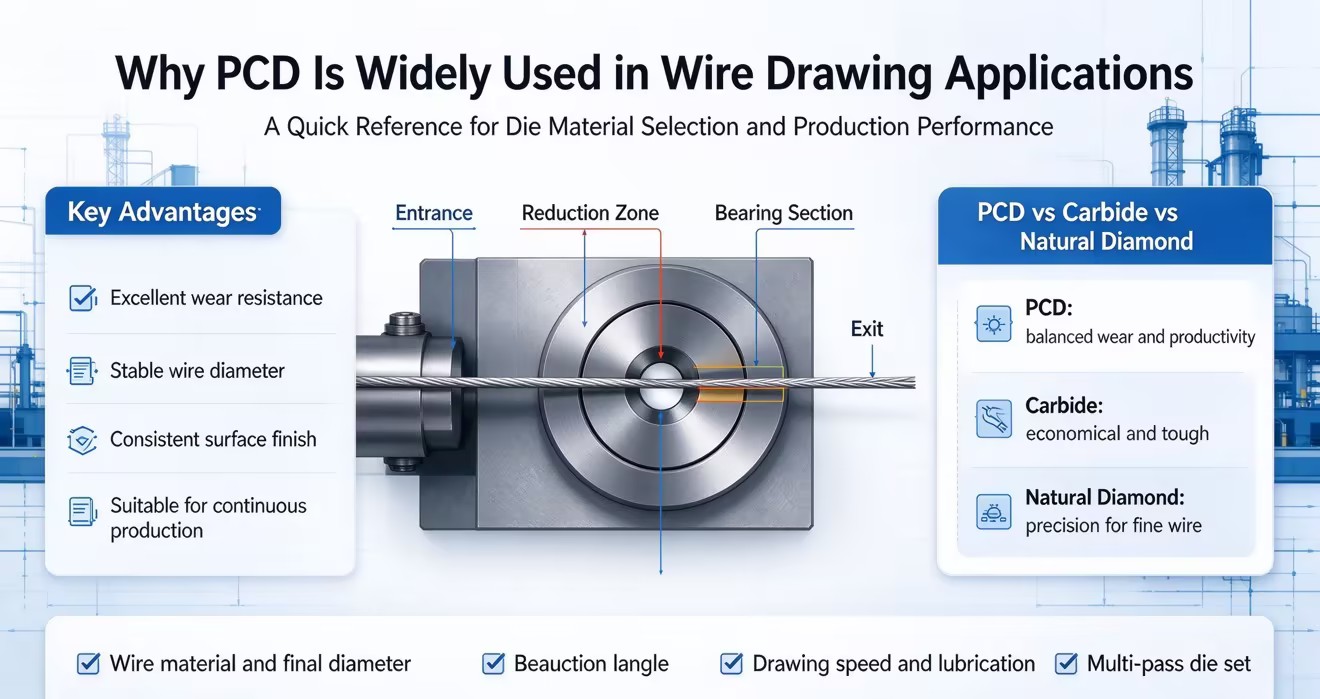

A typical drawing die includes an entrance section, reduction zone, bearing section, and exit area.
The PCD core provides the wear-resistant working surface that contacts the wire.
Because the die geometry influences friction, drawing force, and dimensional accuracy, maintaining the condition of the die bore is essential for stable production.
Manufacturers can explore Modern Diamond's Polycrystalline Diamond (PCD) Drawing Dies, designed for precision and continuous wire drawing applications.
Wear resistance is one of the main reasons manufacturers choose PCD drawing dies.
During wire drawing, the die bore experiences repeated contact, friction, and pressure. Over time, abrasive wear can enlarge the opening and affect the finished wire diameter.
PCD's high hardness helps resist this wear, especially during continuous production.
This can provide several benefits:
Longer intervals between die replacements.
More stable die bore dimensions.
Reduced tooling interruptions.
Better consistency throughout production runs.
Actual service life depends on wire material, lubrication, drawing speed, reduction ratio, and die design.
Dimensional consistency is critical in precision wire manufacturing.
As a drawing die wears, its bore may gradually enlarge. This can produce wire outside the required dimensional tolerance.
PCD helps maintain the working geometry of the die over extended production periods.
This is particularly valuable for electrical conductors, fine industrial wires, and other products requiring controlled diameters.
Stable diameter control can also reduce quality inspections, rejected material, and unnecessary process adjustments.
A properly manufactured and polished PCD die can support a smooth wire surface finish.
The condition of the die's reduction and bearing sections affects friction and the appearance of the finished wire.
A worn or damaged die may contribute to scratches, scoring, or inconsistent surface quality.
Using a suitable PCD die helps maintain a consistent contact surface during drawing.
For copper and aluminum conductors, surface quality is especially important during subsequent processing such as insulation coating, stranding, or winding.
However, lubrication and wire preparation remain essential. PCD material alone cannot eliminate all surface defects.
Continuous wire drawing operations require tools that maintain their performance over long production cycles.
Frequent die changes interrupt manufacturing and increase labor requirements.
PCD's wear resistance can help reduce replacement frequency when compared with less wear-resistant die materials under suitable conditions.
This makes PCD attractive for:
High-volume copper wire production.
Aluminum conductor manufacturing.
Multi-pass wire drawing lines.
Precision industrial wire processing.
Continuous cable manufacturing.
Die design, cooling, drawing speed, and lubrication must still be matched to the production line.
PCD drawing dies can be configured for a broad range of metallic wires.
These include soft non-ferrous metals as well as selected harder materials and alloys.
Wire Material | Common Applications | Why PCD Is Considered |
|---|---|---|
Copper | Electrical cables, conductors, magnet wire | Diameter consistency and wear resistance |
Aluminum | Power cables, lightweight conductors | Stable drawing performance |
Brass | Connectors and industrial components | Precision sizing and surface finish |
Stainless Steel | Springs and precision industrial wire | Wear-resistant tooling under suitable conditions |
Nickel Alloys | Specialty electrical and industrial products | Controlled dimensions and tooling performance |
Tungsten and Molybdenum | Specialty wire applications | Precision tooling when appropriately configured |
Not every PCD grade is suitable for every wire material. Hardness, surface condition, drawing temperature, and lubrication should be evaluated before selection.
Learn more about these applications in Modern Diamond's Industrial Wire Drawing Applications.
Although PCD drawing dies generally cost more initially than conventional carbide dies, their longer usable life may reduce overall production costs.
Tooling cost should be evaluated in relation to the volume of acceptable wire produced.
Potential savings include fewer die replacements, lower downtime, less inspection-related waste, and improved production consistency.
For high-volume manufacturers, these factors may be more important than the initial price of an individual die.
Different drawing die materials offer different combinations of cost, durability, and precision.
Selecting the correct material depends on the production process rather than hardness alone.
Factor | PCD Drawing Dies | Tungsten Carbide Dies | Natural Diamond Dies |
|---|---|---|---|
Wear Resistance | Very high | Good to high | Very high |
Dimensional Stability | Excellent in suitable applications | Good | Excellent |
Initial Cost | Medium–High | Generally lower | Generally high |
Continuous Production | Well suited | Well suited depending on application | Application-dependent |
Common Applications | Copper, aluminum, precision and alloy wires | General industrial and larger wire drawing | Fine and precision wire |
Main Advantage | Balance of wear resistance and production efficiency | Toughness and economical tooling | Precision for specialized applications |
PCD may offer better long-term value when a drawing line experiences frequent carbide die wear, repeated replacement downtime, or demanding dimensional requirements.
However, tungsten carbide remains a practical choice for many general-purpose applications, particularly when tooling toughness and initial cost are the main priorities.
Natural diamond dies are commonly considered for specialized fine-wire applications requiring precise die geometry and high-quality finishes.
For continuous industrial production, PCD often provides an attractive balance between performance, availability, and cost.
Explore the full range of Wire Drawing Dies to compare die materials and applications.
Copper wire drawing is one of the important applications of PCD dies.
Electrical conductor manufacturers require consistent wire diameter, stable production, and suitable surface finish.
PCD dies can support these requirements in single-pass and multi-pass drawing processes.
Aluminum is widely used in power transmission cables and lightweight electrical conductors.
During drawing, material adhesion and surface damage can become concerns when tooling and lubrication are unsuitable.
A properly selected PCD drawing die can help maintain stable dimensions and consistent wire surfaces.
Stainless steel and alloy wires can require higher drawing forces and careful control of reduction and lubrication.
PCD may be suitable for selected applications where dimensional accuracy and wear resistance are important.
The appropriate die core, profile geometry, and drawing conditions should be determined according to the wire grade.
Precision wires used in electronic components, industrial instruments, and specialty manufacturing demand tight dimensional control.
PCD drawing dies can be manufactured with carefully controlled bore geometry for these applications.
For extremely fine or specialized wires, natural diamond or single-crystal diamond may also be considered.
Choosing PCD is only the first step. Die geometry and processing conditions determine whether it will perform efficiently.
Start with the wire material, incoming diameter, and required finished diameter.
These parameters help determine the appropriate bore size and die core.
Modern Diamond's PCD drawing die product range specifies nominal wire diameters from 0.013 to 16 mm, subject to die design and core selection.
The reduction angle controls how the wire deforms while passing through the die.
An unsuitable angle may increase friction, drawing force, heat generation, or wire breakage.
The correct angle depends on the wire material, drawing reduction, and lubrication conditions.
The bearing section helps control the final wire diameter.
Excessive bearing length can increase contact friction, while insufficient bearing length may affect dimensional stability.
A suitable balance is necessary for efficient drawing and consistent wire quality.
Drawing speed influences heat generation, friction, and tool wear.
Lubrication helps reduce surface damage and maintain stable processing conditions.
When selecting a PCD die, specify whether the line operates under wet or dry drawing conditions and identify the lubricant when available.
Multi-pass wire drawing requires coordinated diameter reductions across several dies.
Selecting each die independently without considering the entire drawing sequence can create uneven loads and inconsistent production.
For multi-pass lines, engineers should evaluate the complete die set.
Modern Diamond's PCD Drawing Dies support customized bore diameters, reduction angles, bearing lengths, and multi-pass configurations.
Even highly wear-resistant PCD tools require suitable operating conditions and regular inspection.
Use a lubricant compatible with the wire material and drawing conditions.
Insufficient lubrication can increase friction, heat, and surface damage.
Inspect the bore for wear, scratches, chipping, and dimensional changes.
Replace or service dies when their condition approaches the production tolerance limit.
Dirt, scale, and abrasive particles may accelerate die wear.
Proper wire preparation and filtration of drawing lubricants help protect the working surface.
Monitor drawing tension, machine alignment, cooling, and reduction distribution.
Sudden process changes can affect both wire quality and die performance.
Production Problem | Possible Cause | Recommended Check |
|---|---|---|
Finished diameter increases | Die bore wear | Inspect bore dimensions |
Wire surface scratches | Die damage or contamination | Check polishing and cleanliness |
Frequent wire breakage | Excessive reduction or unsuitable lubrication | Review drawing conditions |
Reduced die life | Abrasive wire surface or incorrect die selection | Verify wire preparation and die grade |
Inconsistent wire finish | Unstable lubrication or die condition | Inspect process stability |
Modern Diamond specializes in wire drawing dies and customized tooling solutions for industrial wire manufacturing.
Its Polycrystalline Diamond (PCD) Drawing Dies can be configured according to wire material, finished diameter, production speed, and drawing conditions.
Specification | Available Options |
|---|---|
Die Material | Polycrystalline Diamond (PCD) |
Nominal Wire Diameter | 0.013–16 mm |
PCD Core Models | D-6 to D-36 |
Thermal Stability Grades | Options rated 650°C, 700°C, or 1000°C depending on model |
Customization | Bore diameter, reduction angle, bearing length, outside dimensions |
Applications | Copper, aluminum, stainless steel, nickel, and other alloy wires |
Drawing Process | Single-pass and multi-pass drawing |
Thermal stability ratings describe material options and should not be treated as recommended operating temperatures for every wire drawing process.
Modern Diamond also offers engineering support for material matching and application-specific die configurations.
Learn more about the manufacturer's capabilities on the About Modern Diamond page.
PCD combines high wear resistance, dimensional stability, and suitability for continuous production. These characteristics help manufacturers maintain wire quality and reduce tooling interruptions.
PCD generally provides greater wear resistance in suitable applications, while carbide offers an economical and tough tooling solution. The better choice depends on wire material, production volume, drawing conditions, and cost requirements.
Yes. PCD dies can be configured for selected stainless steel wire applications. Die grade, reduction angle, lubrication, and drawing conditions should be verified.
A properly polished PCD die can help maintain a consistent wire surface. However, surface quality also depends on lubrication, wire preparation, die condition, and drawing parameters.
Yes. PCD dies are commonly used in continuous and high-speed wire drawing applications. The allowable operating conditions depend on the specific die and wire processing system.
There is no universal service-life figure. Die life depends on wire material, drawing speed, lubrication, reduction ratio, tooling grade, and maintenance practices.
Buyers should provide the wire material, incoming diameter, final diameter, drawing passes, speed, lubricant, required tolerance, and existing die dimensions where available.
PCD is widely used in wire drawing because it offers an effective combination of wear resistance, dimensional accuracy, reliable wire surface quality, and long-term production efficiency.
These advantages make it particularly valuable for copper and aluminum conductor manufacturing, precision wire production, and selected steel and alloy wire applications.
However, the best results depend on correct die material selection, internal geometry, lubrication, and operating conditions.
For manufacturers seeking customized, wear-resistant wire drawing tooling, Modern Diamond provides PCD drawing dies and engineering support for a range of industrial wire applications.
Contact Modern Diamond to discuss your wire material, required dimensions, production conditions, and customized PCD drawing die requirements.
