Magnet wire insulation integrity dictates the performance of transformers, electric motors, and inductors. When enamel coatings fail, the entire electrical system shorts out. Poor coating uniformity introduces severe manufacturing headaches on the plant floor. Over-application causes massive material waste in the varnish bath. Thin spots lead to immediate dielectric breakdown during high-voltage testing. Premature tooling wear forces unexpected line shutdowns, killing your production schedule. You need a reliable control point for insulation thickness and concentricity. Enameling Dies provide that exact mechanical boundary. They determine the final quality and dimensional stability of the drawn wire. This guide breaks down how to evaluate die materials, internal geometries, and supplier capabilities. We will cover practical setup procedures, fluid dynamics in the coating bath, and troubleshooting steps to maximize your production yield and eliminate eccentric wire defects.
Material dictates lifespan and precision: Polycrystalline Diamond (PCD) offers superior wear resistance for high-volume runs, while ultra-fine grain Tungsten Carbide provides a cost-effective solution for specific wire profiles and shorter runs.
Concentricity is non-negotiable: High-quality solid enameling dies ensure perfectly concentric insulation layers, minimizing the risk of voltage breakdown and ensuring compliance with NEMA and IEC standards.
Surface finish impacts yield: A mirror-polished inner surface reduces friction, prevents wire scratching, and ensures a smooth, uniform enamel application.
Downstream processing relies on die precision: Consistent coating thickness is mandatory for repeatable mechanical, thermal, or chemical enamel stripping during the final soldering phase.
Table of Contents
Enameling dies control the thickness, uniformity, and concentricity of insulation coatings applied to copper and aluminum magnet wires. Their precision directly influences electrical insulation performance and the reliability of finished motors, transformers, and coils.
During magnet wire production, bare wire passes through an enamel applicator before entering a curing oven.
The enameling die removes excess liquid enamel and helps distribute the coating evenly around the conductor.
Many production lines use multiple coating and curing passes to build the required insulation thickness gradually.

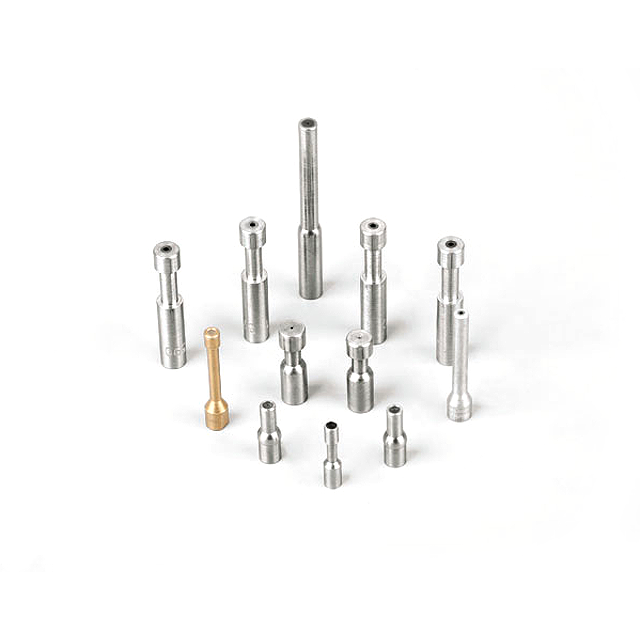

Modern Diamond provides Enameling Dies for precision insulation coating applications.
Concentricity refers to the uniform distribution of insulation around the wire.
An uneven coating may create thin insulation areas, increasing the risk of electrical defects.
The die's internal geometry, enamel flow, wire alignment, and operating conditions all influence coating uniformity.
Precision-finished Diamond Enameling Dies are suitable for demanding magnet wire applications requiring consistent coating quality.
Accurate insulation thickness is essential for meeting magnet wire specifications.
Standards such as IEC 60317 and NEMA MW 1000 define requirements for different magnet wire products.
Excessive coating thickness can increase the finished wire diameter, while insufficient insulation may affect electrical reliability.
Manufacturers should verify die dimensions, coating thickness, and finished wire quality against the applicable specifications.
Parameter | Impact on Coating | Recommended Control |
|---|---|---|
Line Speed | Affects enamel flow and coating buildup | Maintain stable operating speed |
Enamel Viscosity | Influences coating distribution | Control formulation and temperature |
Die Geometry | Affects coating thickness and concentricity | Use suitable internal dimensions |
Wire Tension | Influences wire positioning | Maintain consistent tension |
Die Alignment | Affects coating uniformity | Inspect and adjust positioning |
Consistent enamel coating improves the reliability of downstream electrical manufacturing.
Uniform insulation helps support:
Stable motor and transformer winding.
Consistent finished wire dimensions.
Reliable electrical insulation.
Reduced coating defects.
More predictable insulation removal and connection processes.
For industrial magnet wire production, Modern Diamond also offers Carbide Enameling Dies for applications requiring durable and cost-effective coating tools.
Enameling dies play an important role in controlling insulation thickness, surface quality, and coating uniformity during magnet wire production. Material selection should consider wire diameter, enamel properties, production speed, and required coating accuracy.
PCD enameling dies offer excellent wear resistance and dimensional stability, making them suitable for continuous and high-speed magnet wire production.
Their precision-finished surfaces help maintain consistent coating application and reduce tool wear.
For demanding insulation coating applications, Modern Diamond offers Diamond Enameling Dies for precision wire manufacturing.
Tungsten carbide dies provide a cost-effective option for medium and larger wire diameters.
They offer good mechanical strength and can be manufactured with customized internal geometries.
Modern Diamond's Carbide Enameling Dies support industrial wire coating applications requiring consistent performance.
Solid dies provide a fixed internal geometry, supporting consistent coating dimensions.
Adjustable or split configurations may offer flexibility for specific production requirements but require careful alignment and sealing.
The appropriate design depends on the coating process and manufacturing tolerances.
Die Type | Main Advantage | Typical Application |
|---|---|---|
PCD / Diamond | Excellent wear resistance and precision | Fine and high-speed magnet wire |
Tungsten Carbide | Cost-effective and durable | Medium and larger wire |
Solid Die | Stable fixed geometry | Precision coating |
Adjustable Die | Configuration flexibility | Selected specialized processes |
A smooth internal die surface helps maintain uniform enamel flow and reduce coating defects.
Surface imperfections may contribute to scratches, uneven coating, or enamel buildup.
Precision polishing and regular inspection are important for maintaining coating quality.

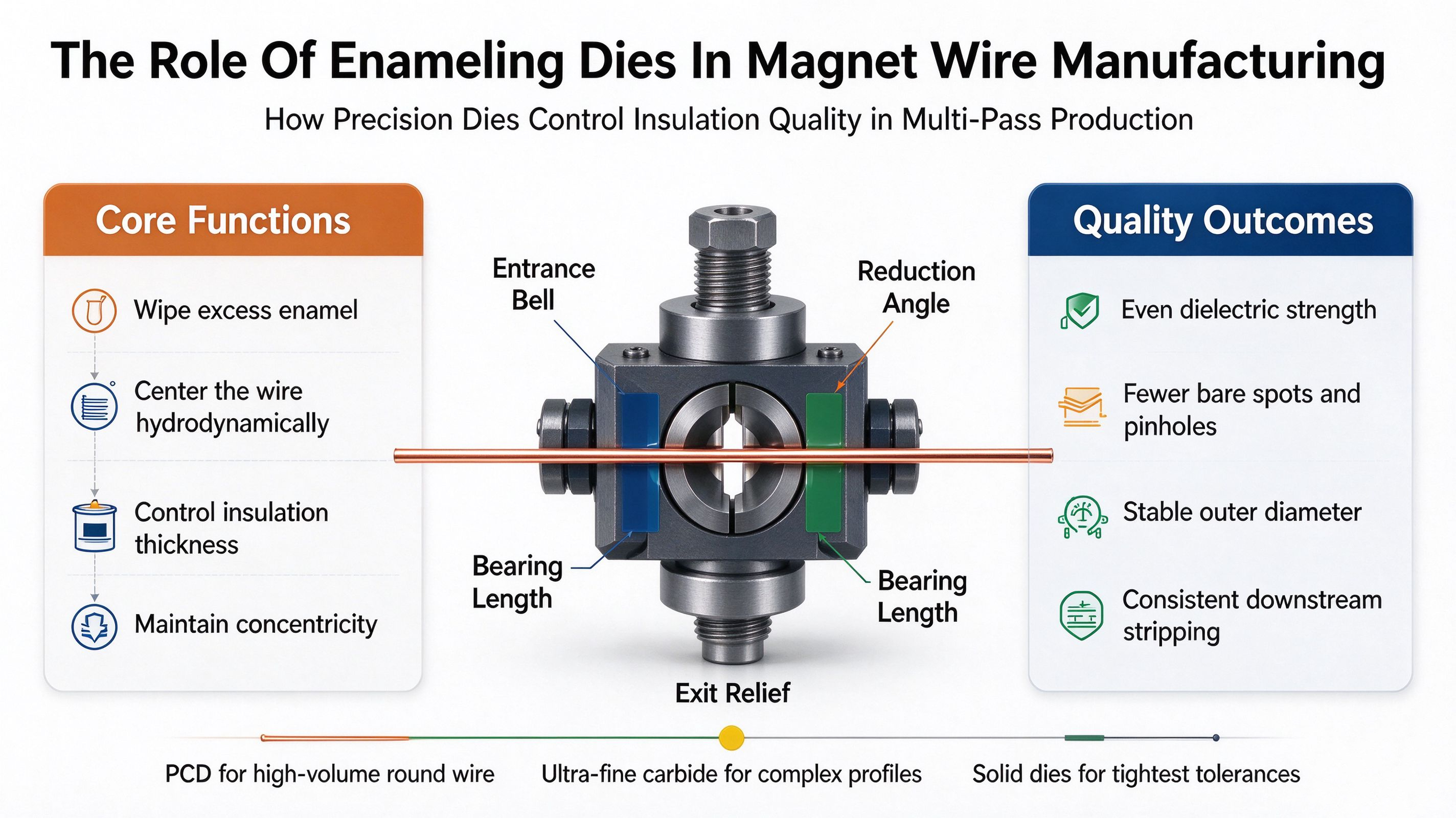

Enameling die geometry influences coating thickness and concentricity.
Important design features include:
Entrance geometry.
Reduction or coating angle.
Bearing length.
Exit profile.
Die alignment and bore accuracy.
The correct dimensions depend on conductor size, enamel viscosity, and target insulation thickness.
Enameling dies must be compatible with the coating material and actual operating temperature.
Different enamel formulations, including polyurethane, polyester, and polyamide-imide systems, may require different processing conditions.
Buyers should confirm die material compatibility, coating temperature, and chemical resistance before production.
Proper die alignment helps maintain even coating thickness around the conductor.
Misalignment or unstable wire tension may cause eccentric coatings and surface defects.
Operators should check die positioning, wire path, and production settings during commissioning.
Regular inspection helps detect die wear before it affects insulation quality.
Monitor:
Coated wire outside diameter.
Insulation concentricity.
Die opening condition.
Surface quality.
Coating consistency.
Replace, clean, or service dies according to their measured condition and production requirements.
Coating Problem | Possible Cause | Recommended Check |
|---|---|---|
Uneven Coating Thickness | Incorrect geometry or unstable flow | Die dimensions and enamel viscosity |
Pinholes | Contamination or coating defects | Wire cleanliness and process conditions |
Coating Eccentricity | Die misalignment or unstable tension | Die holder and wire path |
Surface Streaks | Enamel buildup or damaged die | Die cleanliness and surface condition |
Excessive Coated Diameter | Incorrect coating settings or die wear | Die opening and coating process |
Coating defects may have multiple causes. Inspect enamel formulation, wire preparation, curing conditions, and die performance together.
A reliable enameling die supplier should provide consistent dimensions, precision surface finishing, and suitable material options.
Important evaluation factors include:
Available die materials.
Bore accuracy and surface finish.
Custom geometry capabilities.
Quality inspection procedures.
Application-specific engineering support.
Custom enameling dies should match the conductor and insulation coating process.
When requesting a quotation, provide:
Wire material and diameter.
Target insulation thickness.
Enamel type and viscosity.
Production speed.
Number of coating passes.
Required dimensional tolerance.
Existing die dimensions, if available.
Explore Modern Diamond's Enameling Dies range for diamond and carbide solutions used in magnet wire manufacturing.
Contact Modern Diamond to discuss customized enameling dies for motors, transformers, and precision electrical wire applications.
Take immediate action to optimize your production lines and eliminate eccentric wire defects:
Audit your current die wear rates to identify premature failure points in your multi-pass systems.
Implement continuous dual-axis laser diameter monitoring to detect die wear before out-of-spec wire is produced.
Consult with specialized tooling manufacturers to request precision-measured samples tailored to your specific enamel formulations.
Standardize your die alignment procedures using dial indicators to eliminate eccentricity caused by mechanical setup errors.
Establish a strict predictive maintenance schedule based on total meters drawn rather than waiting for visual defects.
A: PCD offers an exponential lifespan increase over tungsten carbide due to its extreme synthetic diamond hardness. It resists abrasion from continuous high-speed drawing. Exact mileage depends on wire speed, enamel viscosity, and conductor material, but PCD consistently outlasts carbide by significant margins in round wire applications.
A: Eccentric coatings create dangerously thin spots in the insulation layer. These thin areas lack the necessary dielectric strength. When the wire is tightly wound into electrical coils, high voltage will arc through these weak points, leading to dielectric breakdown and catastrophic short circuits.
A: Solid dies are machined from a single, continuous piece of material. This monolithic structure offers superior mechanical rigidity and maintains tighter dimensional tolerances under thermal stress. Adjustable dies introduce mechanical seams and variables that compromise coating uniformity and cause surface streaking.
A: Yes, worn tungsten carbide dies can often be reconditioned. Specialized tooling facilities can bore and repolish the die to the next standard size up. This practice extends their lifecycle, reduces material waste, and maximizes the utility of the original carbide blank.
A: Uneven coatings primarily result from worn die bearings, improper mechanical alignment of the die holder, or fluctuating enamel viscosity. Microscopic surface damage inside the die can also disrupt fluid dynamics, causing the enamel to apply eccentrically.
A: Line speed directly impacts the fluid dynamics of the enamel. Higher speeds increase the hydrodynamic pressure within the die bearing. Manufacturers must engineer specific reduction angles and bearing lengths to manage this pressure, preventing turbulence and ensuring a smooth coating at high velocities.
A: Poor die quality produces uneven enamel thickness. When end-users attempt to mechanically, thermally, or chemically strip the wire for soldering, the varying thickness causes inconsistent removal. This leaves residue or damages the copper, ultimately increasing defect rates and poor electrical connections.
