How Copper Wire Is Manufactured: Complete Process From Copper Rod to Finished Wire

Introduction

Copper wire is one of the most widely used industrial materials, serving as the foundation for electrical transmission, telecommunications, automotive systems, electronics, renewable energy, and countless other applications. Although the finished product appears simple, copper wire manufacturing involves a series of highly controlled processes including copper refining, continuous casting, wire drawing, annealing, and quality inspection. Among these stages, the wire drawing process plays the most critical role in determining wire diameter, surface finish, mechanical properties, and production efficiency. This guide explains how copper wire is manufactured from raw copper to finished wire and highlights the key technologies used throughout the production process.
While every manufacturing stage contributes to the final product, wire drawing is the process that most directly determines wire diameter, surface finish, dimensional accuracy, and production efficiency. The performance of the wire drawing die therefore has a significant influence on product quality, production cost, and die service life. This guide explains the complete copper wire manufacturing process while highlighting the critical role of wire drawing technology and die selection in modern production.

Quick Answer

Copper wire is manufactured by melting and refining copper, continuously casting it into copper rod, cleaning the rod surface, and reducing its diameter through multiple wire drawing dies. Depending on the application, the wire may then undergo annealing, surface treatment, coating, stranding, insulation, and final quality inspection before being wound onto reels for shipment.

Copper Wire Manufacturing Overview

Copper Wire Manufacturing Process at a Glance

The copper wire manufacturing process consists of nine major stages, from copper refining to final quality inspection. While every stage contributes to product quality, wire drawing has the greatest influence on wire diameter, surface finish, dimensional accuracy, and production efficiency.

What Is Copper Wire Manufacturing?

Copper wire manufacturing is a continuous metal processing operation that transforms refined copper into wire with precise dimensions and controlled mechanical properties.

The manufacturing process combines several technologies, including:

• Copper refining

• Continuous casting

• Rolling

• Wire drawing

• Annealing

• Surface treatment

• Inspection

• Packaging

Each production stage contributes to the final wire quality.

Why Is Copper Wire So Widely Used?

Copper offers an excellent combination of physical and electrical properties that make it one of the most valuable engineering materials.

Major advantages include:

• Excellent electrical conductivity

• High thermal conductivity

• Good ductility

• Excellent corrosion resistance

• Easy processing

• Long service life

• High recyclability

Because of these characteristics, copper wire is used extensively in:

• Power transmission

• Electrical cables

• Automotive wiring

• Electronic equipment

• Communication cables

• Renewable energy systems

• Industrial machinery

Table 1. Advantages of Copper Wire

Copper Wire Manufacturing Process

Step 1. Copper Refining

Copper wire production begins with refined copper.

Raw copper extracted from mining contains impurities that reduce electrical conductivity.

These impurities are removed through refining processes to produce high-purity copper.

For electrical applications, copper purity typically exceeds 99.9%.

Higher purity provides:

• Better electrical conductivity

• Improved ductility

• Better drawing performance

• Higher product reliability

Step 2. Continuous Casting and Rolling

After refining, molten copper is continuously cast into copper rod.

Continuous casting provides:

• Uniform material quality

• Stable grain structure

• High production efficiency

• Reduced material waste

The cast rod is then hot rolled to the required starting diameter for wire drawing.

Typical copper rod diameter ranges from:

• 8 mm

• 12 mm

depending on the manufacturing process.

Table 2. Continuous Casting Advantages

Expert Tip

Consistent copper rod quality is essential for stable wire drawing. Variations in rod diameter or material composition can increase die wear and reduce production efficiency.

Step 3. Surface Cleaning

Before wire drawing begins, the copper rod surface must be cleaned.

Surface contaminants such as:

• Oxides

• Dirt

• Lubricant residue

• Scale

can damage drawing dies and reduce wire quality.

Cleaning methods include:

• Mechanical brushing

• Chemical cleaning

• Surface polishing

A clean surface improves lubricant performance and extends die life.

Step 4. Wire Drawing

Wire drawing is the most important stage of copper wire manufacturing.

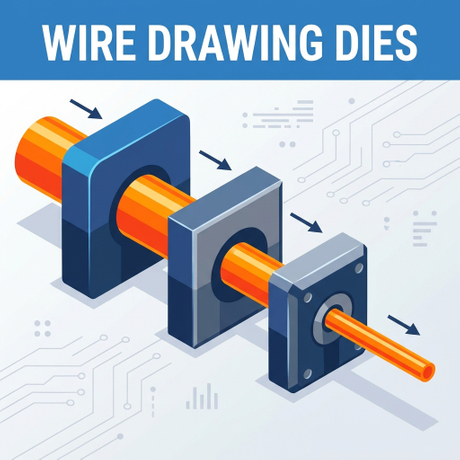

The copper rod is pulled through a series of progressively smaller drawing dies.

Each drawing pass reduces the wire diameter while increasing its length.

The total material volume remains essentially unchanged.

Benefits of wire drawing include:

• Precise wire diameter

• Improved surface finish

• High dimensional accuracy

• Increased tensile strength

• Continuous production

Most industrial production lines use multiple drawing dies arranged in sequence.

Rather than performing one large reduction, the wire passes through several smaller reductions.

This minimizes drawing force while improving product consistency.

Table 3. Main Stages of Wire Drawing

How Drawing Dies Affect Copper Wire Quality

Modern wire drawing lines rely on precision-engineered drawing dies to control the deformation of copper as it passes through multiple reduction stages. The geometry, material, and surface finish of the die directly influence production stability, wire quality, and operating costs.

The following factors are particularly important:

Among available die materials, PCD drawing dies are widely used in high-speed copper wire manufacturing because they provide excellent wear resistance, maintain stable hole geometry, and produce superior wire surface quality over long production runs. Compared with conventional carbide dies, PCD dies generally require fewer replacements and help reduce production interruptions.

Choosing the Right Drawing Die Material

Selecting the correct die material depends on wire size, production speed, required surface finish, and expected die life. For continuous copper wire production, PCD drawing dies are generally the preferred solution due to their balance of durability, productivity, and wire quality.

Step 5. Lubrication During Wire Drawing

Lubrication plays a critical role throughout the drawing process.

A lubricant film separates the copper wire from the drawing die, reducing:

• Friction

• Heat generation

• Die wear

• Drawing force

Proper lubrication also improves:

• Surface quality

• Production speed

• Tool life

• Product consistency

Common lubricant systems include:

• Wet drawing lubricants

• Oil emulsions

• Synthetic lubricants

Table 4. Benefits of Proper Lubrication

How Lubrication and Drawing Dies Work Together

Lubrication alone cannot guarantee stable production. The interaction between lubricant performance and drawing die geometry largely determines friction, heat generation, and die wear.

A properly matched lubrication system helps:

• Reduce drawing force

• Improve wire surface finish

• Extend die service life

• Maintain stable wire diameter

• Increase production speed

Manufacturers typically optimize lubricant selection together with drawing die material and reduction schedules to achieve maximum production efficiency.

Step 6. Annealing

After wire drawing, copper becomes work-hardened.

Although increased strength is beneficial for some applications, excessive hardness reduces flexibility and makes further processing more difficult.

Annealing restores ductility by heating the wire under controlled conditions.

Depending on the product requirements, manufacturers may use:

• Continuous annealing

• Inline annealing

• Batch annealing

Annealing provides several benefits:

• Improves flexibility

• Restores ductility

• Reduces internal stress

• Improves conductivity

• Facilitates insulation and stranding

Step 7. Surface Treatment and Coating

Some copper wires receive additional surface treatments after annealing.

The treatment depends on the intended application.

Common options include:

• Tin plating

• Silver plating

• Nickel plating

• Anti-oxidation treatment

• Surface cleaning

These treatments improve:

• Corrosion resistance

• Solderability

• Electrical performance

• Long-term reliability

Step 8. Stranding and Insulation

Many finished products require multiple copper wires to be combined.

Individual wires may be stranded together to improve flexibility and mechanical strength.

Depending on the final application, insulation materials may then be applied.

Common insulation materials include:

• PVC

• XLPE

• PE

• PTFE

• Silicone rubber

Typical applications include:

• Building wire

• Automotive cable

• Communication cable

• Power cable

• Control cable

Table 5. Post-Drawing Processes

Step 9. Quality Inspection

Before shipment, copper wire undergoes comprehensive quality inspection.

Testing typically includes:

Diameter Measurement

Laser measurement systems continuously monitor wire diameter throughout production.

Surface Inspection

Manufacturers inspect for:

• Scratches

• Cracks

• Surface contamination

• Die marks

Mechanical Testing

Typical tests include:

• Tensile strength

• Elongation

• Bend performance

Electrical Testing

Electrical conductivity is verified to ensure compliance with customer specifications and applicable industry standards.

Table 6. Common Quality Inspection Items

Main Equipment Used in Copper Wire Manufacturing

Among all production equipment, wire drawing machines and drawing dies have the greatest influence on dimensional accuracy, surface quality, and production efficiency.

Types of Copper Wire Produced

Although the core manufacturing process remains largely the same, additional processing steps create different types of copper wire for specific industrial applications.

Each wire type places different demands on the wire drawing process. Manufacturers often select different drawing die materials, reduction schedules, and lubrication systems according to the required wire diameter, surface quality, and production speed. For example, ultra-fine wire typically requires precision PCD or natural diamond drawing dies to maintain tight dimensional tolerances and superior surface finish.

Common Manufacturing Problems and Solutions

Copper wire manufacturing involves many process variables.

The following issues are among the most common.

Table 7. Common Problems and Recommended Solutions

How to Choose the Right Copper Wire Manufacturing Partner

Selecting a copper wire supplier involves more than comparing prices. Consistent product quality depends on the manufacturer's production technology, quality management, and process control. Buyers should evaluate suppliers based on their overall manufacturing capability rather than a single production stage.

When evaluating a manufacturer, consider the following factors:

• Copper purity and raw material control

• Continuous casting capability

• Wire drawing technology

• Drawing die materials (PCD, carbide, natural diamond)

• Lubrication management

• Inline annealing capability

• Diameter tolerance control

• Automated inspection systems

• Production traceability

• Technical support and customization capability

Manufacturers that invest in high-quality drawing dies, advanced process control, and comprehensive quality inspection are generally able to deliver more consistent wire quality, longer production stability, and lower overall manufacturing costs.

Buyer Checklist

Before selecting a copper wire manufacturer, verify the following:

• What grade of copper is used?

• Is continuous casting employed?

• What type of drawing dies are used?

• Are lubrication systems optimized?

• Is inline annealing available?

• What quality inspection methods are implemented?

• Can the manufacturer produce customized wire diameters?

• Are international quality standards followed?

• Is production traceability available?

• Does the supplier provide technical support?

Expert Recommendations

Experienced wire manufacturing engineers generally recommend:

• Use high-purity copper rod for stable production.

• Select PCD drawing dies for high-volume copper wire manufacturing.

• Optimize lubrication throughout the drawing process.

• Monitor wire diameter continuously during production.

• Maintain strict control of annealing parameters.

• Partner with manufacturers that provide comprehensive quality control and technical support.

Conclusion

Copper wire manufacturing is a sophisticated process involving refining, continuous casting, surface preparation, wire drawing, annealing, surface treatment, quality inspection, and packaging. Among these stages, wire drawing plays the most significant role in determining wire diameter, surface quality, and production efficiency.

By carefully controlling every stage of production—including raw material quality, die selection, lubrication, annealing, and inspection—manufacturers can produce copper wire with excellent electrical conductivity, precise dimensions, superior surface finish, and long-term reliability. Understanding the complete manufacturing process enables buyers to evaluate suppliers more effectively and select products that meet demanding industrial requirements.

FAQ

What is the most important step in copper wire manufacturing?

Wire drawing is generally considered the most critical stage because it determines the final wire diameter, dimensional accuracy, surface finish, and many mechanical properties. However, high-quality raw materials and proper annealing are also essential for achieving excellent product performance.

Why is copper wire annealed after drawing?

Wire drawing causes work hardening, increasing the wire's strength but reducing its flexibility. Annealing restores ductility, improves electrical conductivity, and prepares the wire for insulation, stranding, or further processing.

Why are PCD drawing dies commonly used for copper wire?

PCD drawing dies offer outstanding wear resistance, low friction, and superior surface finish. Their long service life makes them ideal for continuous high-speed copper wire production.

How is copper wire quality inspected?

Manufacturers typically inspect wire diameter, surface finish, tensile strength, elongation, electrical conductivity, and overall coil quality. Many production lines also use inline laser measurement systems for continuous dimensional monitoring.

What factors most affect copper wire quality?

The most important factors include copper purity, continuous casting quality, wire drawing parameters, die material, lubrication, annealing conditions, and comprehensive quality control throughout the manufacturing process.
