Extrusion dies play a pivotal role in the manufacturing process, especially in industries such as plastics, metals, and rubber. These devices are essential for shaping materials as they are forced through them under high pressure, resulting in continuous profiles with consistent cross-sections. Whether you're dealing with plastic profiles, pipes, or even food processing, understanding the function, types, and design of extrusion dies is crucial for optimizing production processes and improving product quality.
In this article, we will explore the concept of extrusion dies in-depth, detailing how they work, the various types available, and their importance in different industrial applications. By the end of this guide, you'll have a comprehensive understanding of extrusion dies and their role in modern manufacturing.

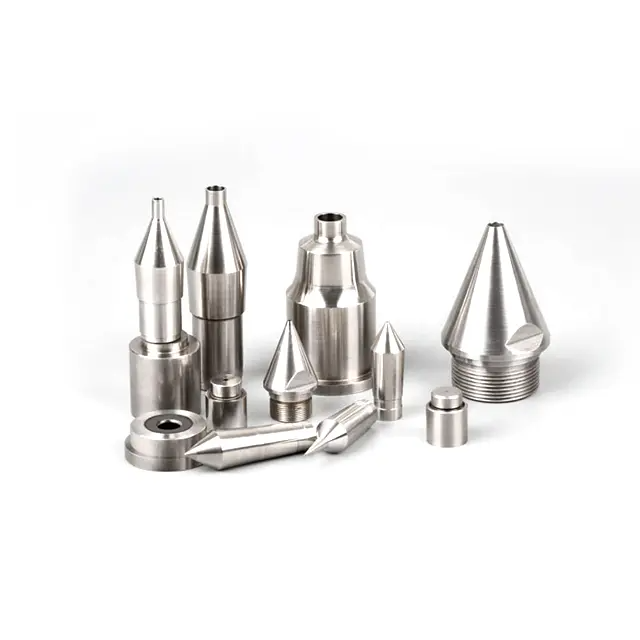

Extrusion dies are tools used in the extrusion process to shape and form materials, typically in the form of a continuous profile, by forcing them through a die. In extrusion, raw material—often in the form of pellets or billets—gets heated until it reaches a molten or soft state. This material is then forced through the extrusion die using a mechanical or hydraulic press, and as it exits the die, it takes on the shape of the die opening.
Extrusion dies are made of durable materials, such as tool steel or hardened alloys, to withstand the extreme pressures and temperatures encountered during the extrusion process. The design and quality of the die directly influence the product's final characteristics, such as dimensions, surface finish, and consistency.
Shaping Material: The primary function of an extrusion die is to shape the material into a specific profile.
Ensuring Uniformity: Extrusion dies are designed to ensure the material flows evenly, which is vital for maintaining uniform product quality.
Providing Efficiency: Extrusion dies are engineered for high efficiency, allowing for continuous production of large volumes of material with minimal waste.
Extrusion dies work by utilizing pressure and heat to deform and shape material into a desired form. Here's a breakdown of how the process typically unfolds:
Material Feeding: The raw material—usually in pellet or powder form—is fed into an extruder hopper.
Melting/Softening: Inside the extruder barrel, the material is subjected to heat and pressure until it reaches a molten or softened state.
Pressurization: The molten material is then pushed into the extrusion die by a screw or plunger.
Die Opening: The material flows through the die opening, which defines its final shape and size.
Cooling and Solidification: As the material exits the die, it is cooled and solidified to maintain its shape.
The design of the die opening is crucial in determining the product’s cross-sectional geometry. The uniformity of the die ensures that the material flows smoothly and consistently, minimizing defects such as air bubbles or uneven thickness.
The pressure and temperature applied during extrusion are essential for achieving optimal material flow. Too much pressure can lead to clogging, while insufficient pressure may result in poor flow and inconsistent product quality. Temperature control is equally critical, as material viscosity changes with temperature, affecting how smoothly the material flows through the die.
Extrusion dies come in various forms, each tailored to specific applications and materials. The following are the most common types of extrusion dies:
Profile dies are used for creating continuous profiles, such as window frames, pipes, and sheets. These dies feature complex geometric shapes and are often used in plastic extrusion.
Applications: Window frames, door seals, pipes
Materials: Plastics, metals
Shape: Customizable to meet specific product requirements
Sheet and film dies are used to create flat sheets and films for applications such as packaging materials, food packaging, and medical supplies. These dies often feature wide openings and precise control over thickness.
Applications: Packaging materials, food wrapping, medical films
Materials: Polyethylene, polypropylene
Shape: Flat or slightly curved for uniform thickness
Pipe and tube dies are specialized to form hollow structures like pipes and tubes. These dies are crucial in industries like plumbing, construction, and automotive manufacturing.
Applications: Plumbing pipes, automotive exhaust systems
Materials: Metal, plastic
Shape: Circular, with a hollow core
Co-extrusion dies allow for the simultaneous extrusion of two or more materials to form a layered product. This type of die is essential in industries that require composite materials or multi-layered films.
Applications: Multi-layered packaging, composite profiles
Materials: Multiple materials like metals and plastics
Shape: Typically multi-chambered with separate material channels
The design of extrusion dies is both an art and a science, requiring deep expertise in material properties, flow dynamics, and thermodynamics. The key factors influencing die design include:
Material Compatibility: Different materials require different die designs due to variations in melting points, viscosity, and flow behavior.
Die Geometry: The shape of the die opening must align with the desired product profile. Precision is essential, as even slight variations can lead to defects in the final product.
Wear Resistance: Given the extreme conditions during extrusion, the die material must be durable and resistant to wear, corrosion, and thermal degradation.
Cooling and Heating Systems: Dies often feature integrated cooling or heating systems to regulate the temperature of the material, ensuring it remains within the optimal extrusion range.
| Factor | Impact on Extrusion Process |
|---|---|
| Material Selection | Ensures that the die can withstand the conditions of the extrusion process (temperature, pressure, chemical exposure). |
| Die Opening Size | Affects the material flow rate and the final shape of the extruded product. |
| Cooling Efficiency | Controls the solidification rate of the extruded material, ensuring consistent quality and preventing defects. |
Despite advancements in extrusion technology, several challenges persist when designing and manufacturing extrusion dies:
Die Wear: Continuous exposure to high temperatures and pressure can cause the die to wear out over time, leading to inconsistencies in the product.
Flow Instabilities: Poor material flow within the die can result in defects such as surface marks or non-uniform product thickness.
Thermal Management: Properly managing the temperature within the die is crucial. Too high or too low a temperature can compromise material properties and die performance.
Extrusion dies are indispensable in various industries, each with specific requirements for die design and function:
Plastics Industry: For the production of plastic pipes, films, and profiles used in construction, packaging, and automotive sectors.
Metalworking: To extrude metal alloys into components like rods, beams, and tubes for use in industrial applications.
Food Processing: For creating snacks, pasta, and other food products with a specific shape and texture.
Medical Devices: To produce continuous components like tubing for catheters, which require high precision and uniformity.
Extrusion dies are a cornerstone of modern manufacturing, enabling the production of continuous materials and components across a broad range of industries. By understanding the types, design principles, and applications of extrusion dies, manufacturers can improve production efficiency, reduce waste, and ensure high-quality outputs. Whether you're working with plastics, metals, or food products, the performance of your extrusion die can have a significant impact on your product’s success.
1. What materials are used to make extrusion dies?
Extrusion dies are typically made from high-grade tool steels or specialized alloys that can withstand high pressure and temperature conditions.
2. How do extrusion dies affect product quality?
The design and maintenance of the die directly influence the consistency, surface finish, and dimensional accuracy of the final product.
3. What industries rely on extrusion dies?
Extrusion dies are used in plastics manufacturing, food processing, metalworking, automotive industries, and more.
4. How often do extrusion dies need to be replaced?
The lifespan of an extrusion die depends on its material, the type of product being made, and the intensity of the manufacturing process. Regular inspection and maintenance can extend its life.
5. Can extrusion dies be customized?
Yes, extrusion dies can be designed and engineered to meet the specific needs of different applications, including unique product shapes, sizes, and material types.
